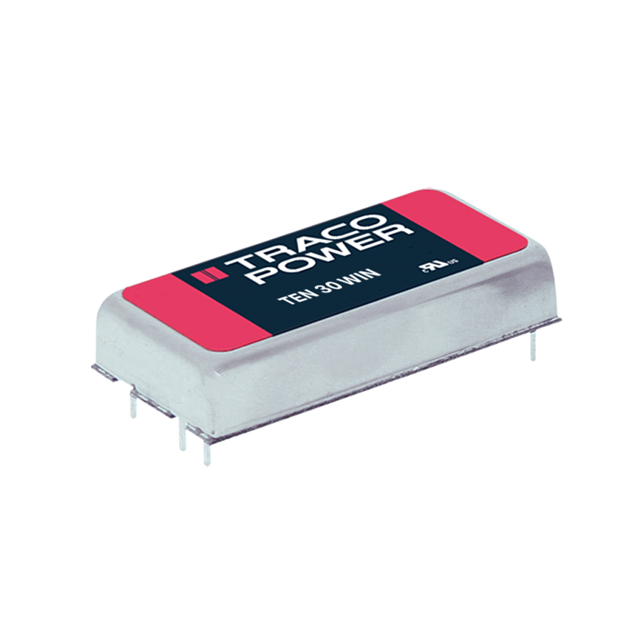

The Traco Power TEN 30WIN (30W) is a DC DC converter that is designed for use in ITE (Commercial) applications and manufactured by Traco Power.

• Isolated Module Type: with a remote On/Off feature, OCP, OTP, OVP, SCP, and UVLO.
• Package: in a tube form, and the standard package is 10.
• Power: 25 W
• Voltage Isolation: 1.5 kV
• Output: one output.
• Current Output: 7.5A
• Voltage Input: between 9V and 36V.
• Voltage Output: 3.3V
• Efficiency: 86 percent.
• Mounting Type: through-hole
• Package/Case: 7-DIP module, six leads package/case.
• Operating Temperature Range: -40°C to 75°C (with derating)
• Dimension: 2.00” L x 1.00” W x 0.40” H (50.8mm x 25.4mm x 10.2mm).
