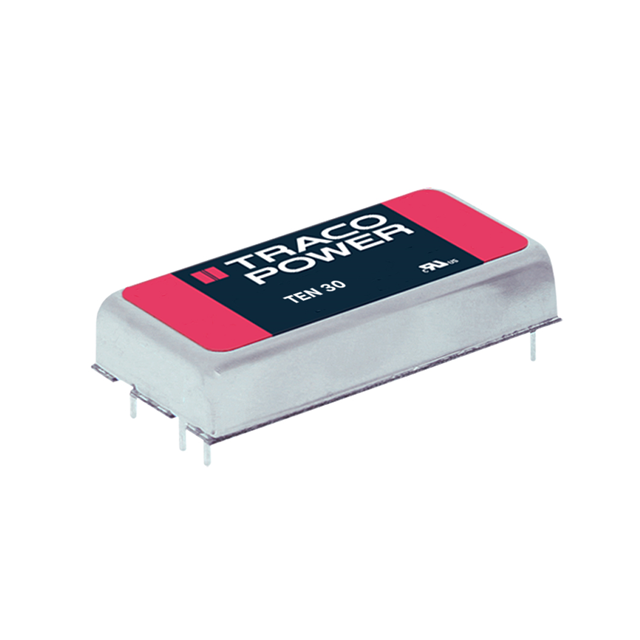

TEN 30-4822 Real Image
Same model may have multiple batches, images only for reference.

TEN 30-4822

Part No TEN 30-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 36V - 75V Input
Datasheet
TEN 30-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 30-4822-ND,TEN30-4822
Standard Package 10
Win Source Part Number 1335689-TEN 30-4822
Ultra Librarian 3D Model Ultra Librarian TEN 30-4822 CAD Model

Description

The TEN 30-4822 is a 30W isolated module DC-DC converter from Traco Power.

  • Voltage Isolation: 1.5 kV
  • Temperature Range: -40°C to 85°C (with derating)
  • Outputs: two outputs
  • Output 1: 12V @ 1.25A
  • Output 2: -12V @ 1.25A
  • Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Package: 10
  • Mounting Type: through hole
  • Features: remote on/off, OCP, OTP, OVP, SCP, and UVLO
  • HTSUS: 8504.40.9580
  • Compliance: ROHS3 compliant
  • Also known as: TEN 30-4822-ND and TEN30-4822
