Same model may have multiple batches, images only for reference.

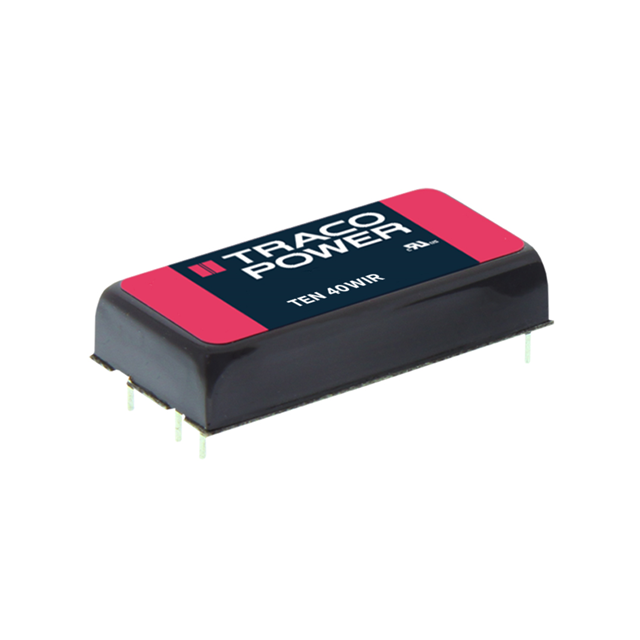

TEN 40-4822WIR Real Image
Same model may have multiple batches, images only for reference.

TEN 40-4822WIR

Part No TEN 40-4822WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.666A, 1.666A 18V - 75V Input
Datasheet
TEN 40-4822WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.666A, 1.666A
Power (Watts) 40 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 40-4822WIR-ND,2266-TEN 40-4822WIR,TEN40-4822WIR
Standard Package 10
Win Source Part Number 1335803-TEN 40-4822WIR
Ultra Librarian 3D Model Ultra Librarian TEN 40-4822WIR CAD Model

Description

The TEN 40-4822WIR is a DC-DC converter from Traco Power that is designed to be mounted on a board.

  • Mounting Type: Board Mount
  • Type: Isolated Module
  • Package: Tube
  • Features: Remote On/Off, OCP, OVP, SCP, and UVLO
  • Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Applications: ITE (Commercial) and Railway
  • Power (Watts): 40 W
  • Number of Outputs: 2
  • Current - Output (Max): 1.666A each
  • Voltage - Input: 18V to 75V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Efficiency: 90%
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Package / Case: 6-DIP Module
  • ROHS Status: ROHS3 Compliant
