Same model may have multiple batches, images only for reference.

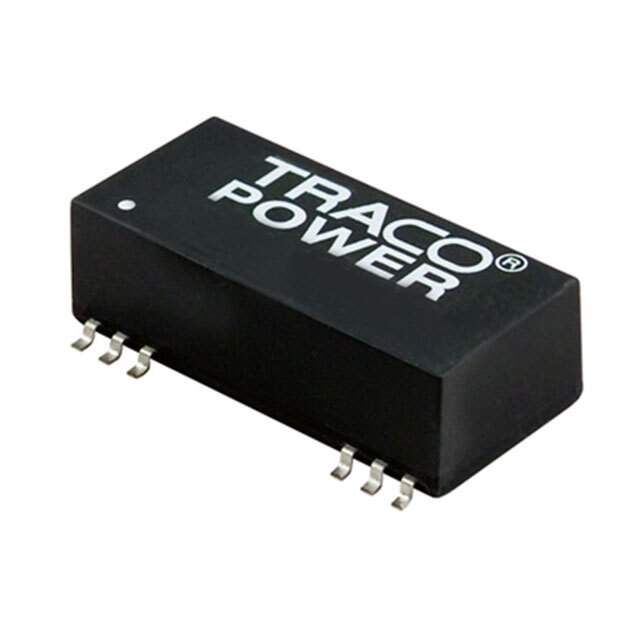

TES 3-2422WI Real Image
Same model may have multiple batches, images only for reference.

TES 3-2422WI

Part No TES 3-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet
TES 3-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TES 3WI (3W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 71°C
Efficiency 81%
Mounting Type Surface Mount
Package / Case 24-SMD Module, 12 Leads
Size / Dimension 1.27" L x 0.58" W x 0.40" H (32.2mm x 14.8mm x 10.2mm)
Base Product Number TES 3
Standard Package 10
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1341220-TES 3-2422WI
Ultra Librarian 3D Model Ultra Librarian TES 3-2422WI CAD Model

Description

The TES 3-2422WI is a 3W Isolated Module DC-DC converter from Traco Power.

  • Power (Watts): 3W
  • Voltage - Isolation: 1.5 kV
  • Efficiency: 81%
  • Number of Outputs: 2
  • Current - Output 1: 125mA
  • Current - Output 2: 125mA
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 36V
  • Operating Temperature: -40°C ~ 71°C
  • Features: High Reliability, Remote On/Off
