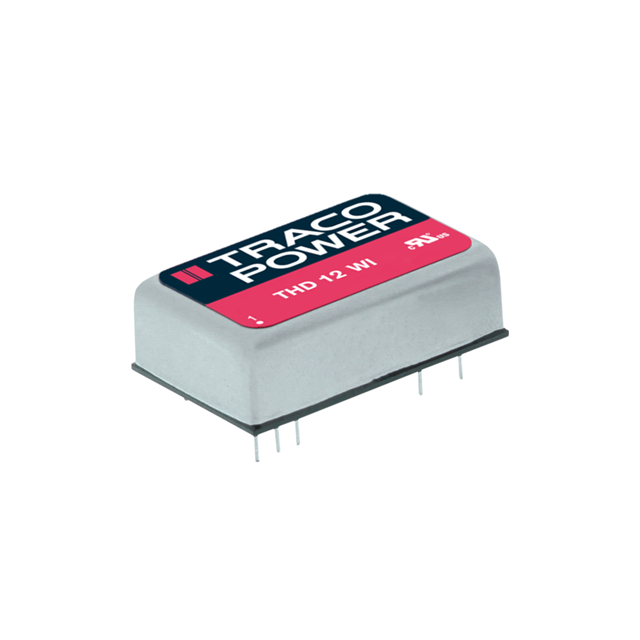

Same model may have multiple batches, images only for reference.

THD 12-2423WI

Name: THD 12-2423WI
Brand: Traco Power
SKU: 1335921
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	THD 12-2423WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 12W / Isolated Module DC DC Converter 2 Output 15V -15V 400mA, 400mA 9V - 36V Input
Datasheet	THD 12-2423WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	400mA, 400mA
Power (Watts)	12 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	85%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 12
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2257
Standard Package	10
Win Source Part Number	1335921-THD 12-2423WI
Ultra Librarian 3D Model	Ultra Librarian THD 12-2423WI CAD Model

Alternative Products

Description

The Traco Power THD 12-2423WI is an isolated module DC-DC converter designed for ITE (Commercial) applications.

Features: Remote on/off, OVP, SCP, and UVLO
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Power: 12W
Voltage Isolation: 1.5 kV
Number of Outputs: 2
Maximum Output Current: 400mA each
Input Voltage Range: 9V to 36V
Output Voltage (Output 1): 15V
Output Voltage (Output 2): -15V
Efficiency: 85%
Operating Temperature: -40°C to 85°C (with derating)
Mounting: Through Hole
Package: 24-DIP module with 8 leads
ECCN: EAR99
RoHS3 Compliant: Yes
