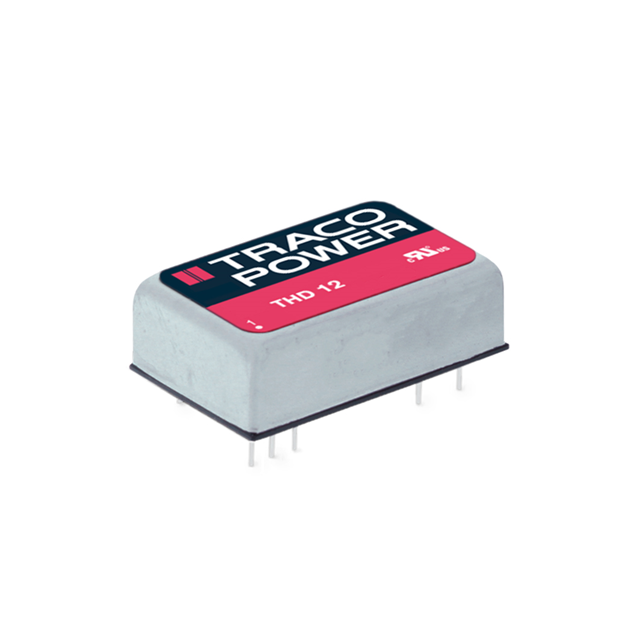

Same model may have multiple batches, images only for reference.

THD 12-4823

Name: THD 12-4823
Brand: Traco Power
SKU: 1335905
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	THD 12-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 12W / Isolated Module DC DC Converter 2 Output 15V -15V 400mA, 400mA 36V - 75V Input
Datasheet	THD 12-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	400mA, 400mA
Power (Watts)	12 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 12
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THD 12-4823-ND,THD12-4823
Standard Package	10
Win Source Part Number	1335905-THD 12-4823
Ultra Librarian 3D Model	Ultra Librarian THD 12-4823 CAD Model

Alternative Products

Description

The Traco Power 1335905-THD 12-4823 is an isolated module DC-DC converter with two outputs.

Power Output: 12 watts
Voltage Isolation: 1.5 kV
Features: Remote on/off, OVP, SCP, and UVLO
Application: ITE (Commercial)
Outputs: Two
Current Output: 400mA each
Input Voltage: 36V to 75V
Output Voltage: 15V and -15V
Mounting: Through-hole
Package: 24-DIP module with 8 leads
ROHS3 Compliant: True
Efficiency: 88%
