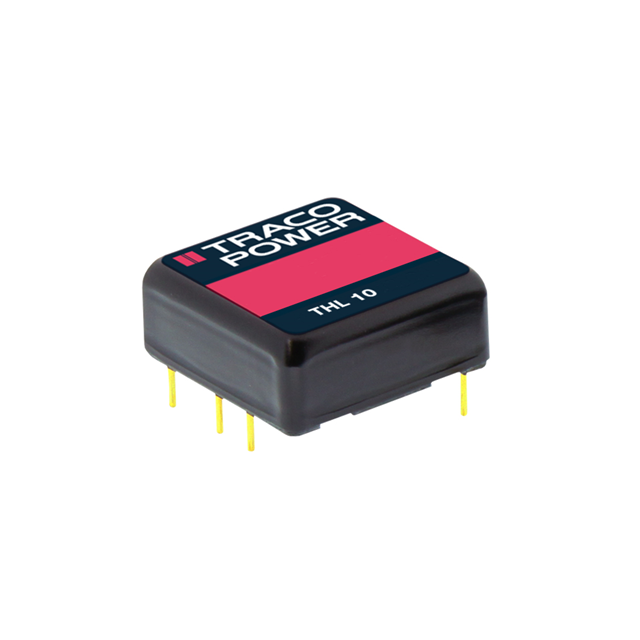

Same model may have multiple batches, images only for reference.

THL 10-1223

Name: THL 10-1223
Brand: Traco Power
SKU: 1335928
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	THL 10-1223
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 9V - 18V Input
Datasheet	THL 10-1223 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Box
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	333mA, 333mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	5-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	THL 10
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THL10-1223,THL 10-1223-ND
Standard Package	10
Win Source Part Number	1335928-THL 10-1223
Ultra Librarian 3D Model	Ultra Librarian THL 10-1223 CAD Model

Alternative Products

Description

This isolated module DC-DC converter from Traco Power has two outputs with a maximum current output of 333mA each.

Number of Outputs: 2
Maximum Current Output: 333mA each
Input Voltage Range: 9V to 18V
Output Voltage 1: 15V
Output Voltage 2: -15V
Efficiency: 87%
Power Rating: 10W
Size/Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Package Type: 5-DIP module
Temperature Range: -40°C to 80°C (with derating)
