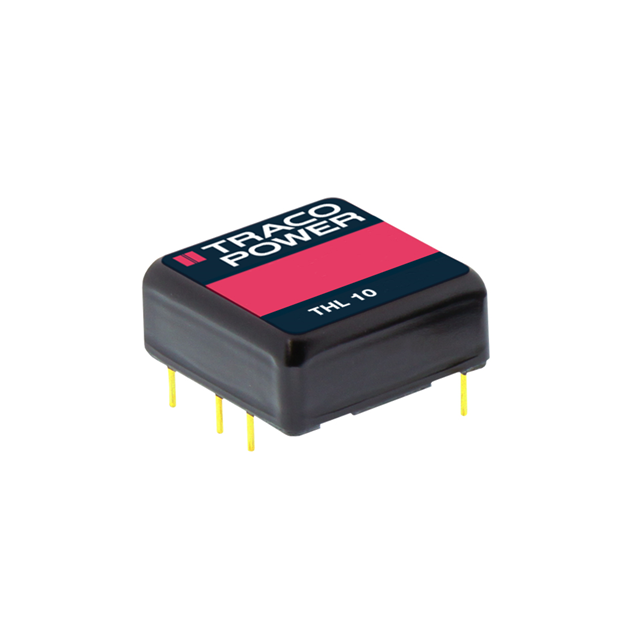

Same model may have multiple batches, images only for reference.

THL 10-2422

Name: THL 10-2422
Brand: Traco Power
SKU: 1335971
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	THL 10-2422
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input
Datasheet	THL 10-2422 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Box
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	416mA, 416mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	5-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	THL 10
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THL10-2422,THL 10-2422-ND
Standard Package	10
Win Source Part Number	1335971-THL 10-2422
Ultra Librarian 3D Model	Ultra Librarian THL 10-2422 CAD Model

Alternative Products

Description

The Traco Power THL 10-2422 is a DC-DC converter that comes in an isolated module type.

Power Rating: 10 W
Feature: SCP
Size: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Applications: ITE (Commercial)
Voltage Isolation: 1.5 kV
Outputs: 2
Input Voltage: 18V to 36V
Output Voltage 1: 12V
Output Voltage 2: -12V
Efficiency: 88%
Temperature Range: -40°C to 80°C (with derating)
Mounting: Through hole
Case/Package: 5-DIP module
Compliance: ROHS3 compliant
REACH: Unaffected by REACH
