Same model may have multiple batches, images only for reference.

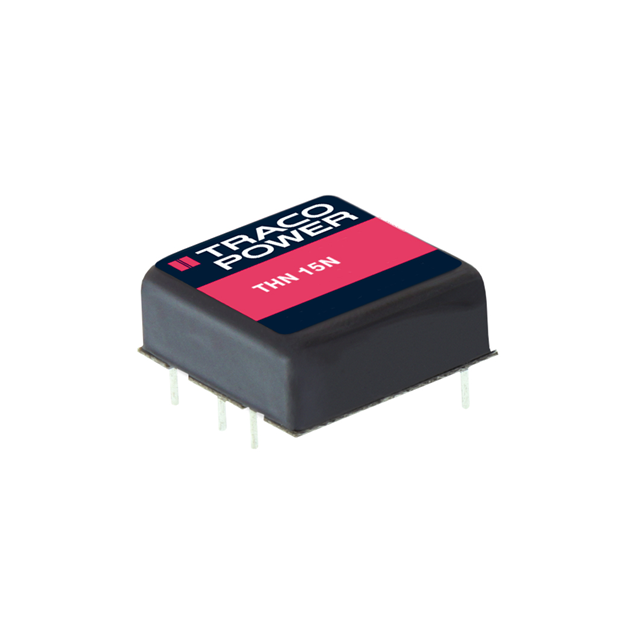

THN 15-2425N Real Image
Same model may have multiple batches, images only for reference.

THN 15-2425N

Part No THN 15-2425N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 15W / Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 18V - 36V Input
Datasheet
THN 15-2425N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Current - Output (Max) 315mA, 315mA
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3287,THN15-2425N,THN15-2425N-ND,THN15-2425NINACTIVE
Standard Package 10
Win Source Part Number 1335975-THN 15-2425N
Ultra Librarian 3D Model Ultra Librarian THN 15-2425N CAD Model

Description

This electronic component is manufactured by Traco Power and its Win Source Part Number is 1335975-THN 15-2425N.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote On/Off, OCP, OVP, and SCP
  • Size/Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10 units
  • Mounting: Through hole
  • Power (watts): 15W
  • Voltage Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Current Output: 315mA each
  • Input Voltage: 18V to 36V
  • Output Voltage 1: 24V
  • Output Voltage 2: -24V
  • Efficiency: 90%
  • Temperature Range: -40°C ~ 105°C (With Derating)
  • Case/Package: 6-DIP Module
