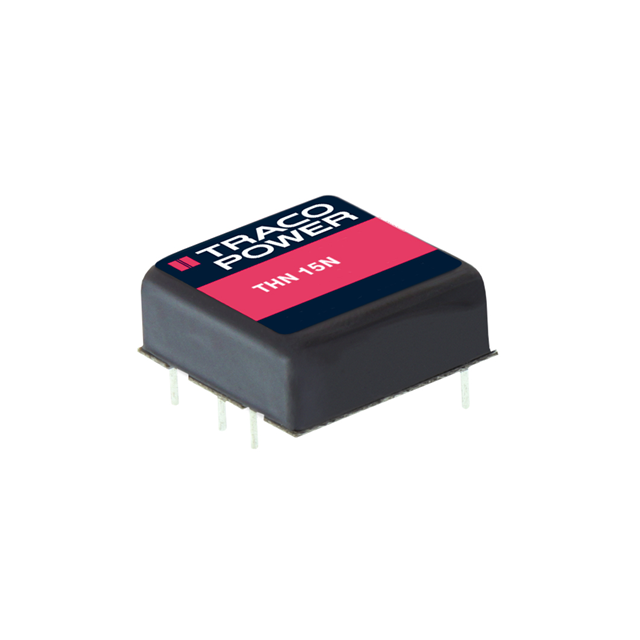

Same model may have multiple batches, images only for reference.

THN 15-4822N

Name: THN 15-4822N
Brand: Traco Power
SKU: 1336014
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	THN 15-4822N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 36V - 75V Input
Datasheet	THN 15-4822N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	625mA, 625mA
Power (Watts)	15 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-3294,THN15-4822N,THN15-4822N-ND,THN15-4822NINACTIVE
Standard Package	10
Win Source Part Number	1336014-THN 15-4822N
Ultra Librarian 3D Model	Ultra Librarian THN 15-4822N CAD Model

Alternative Products

Description

The THN 15-4822N is a DC DC converter manufactured by Traco Power.

Packaging: Tube
Type: Isolated module
Features: Remote on/off, OCP, OVP, and SCP
Size/Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Applications: ITE (Commercial)
Standard Package: 10
Mounting: Through Hole
Power (watts): 15 W
Voltage Isolation: 1.6 kV
Number of Outputs: 2
Current Output: 625mA, 625mA
Voltage Input (min): 36V
Voltage Input (max): 75V
Voltage Output 1: 12V
Voltage Output 2: -12V
Efficiency: 89%
Temperature Range: -40°C ~ 105°C (With Derating)
Case/Package: 6-DIP module
ECCN: EAR99
