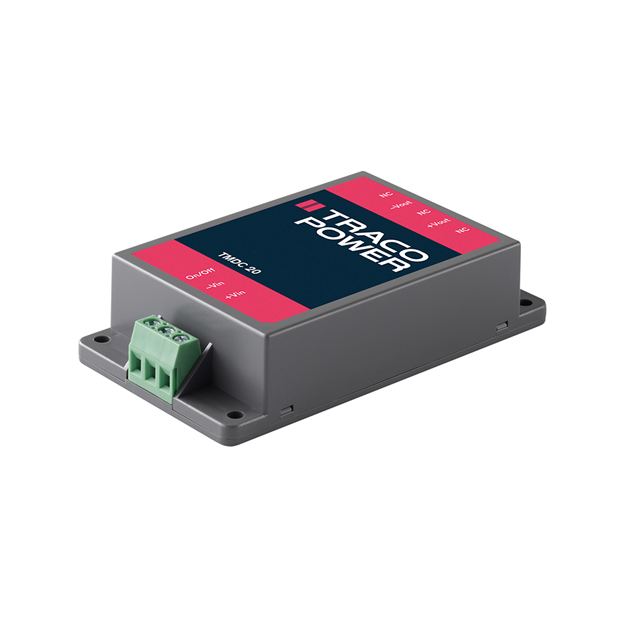

TMDC 20-2418 Real Image
Same model may have multiple batches, images only for reference.

TMDC 20-2418

Part No TMDC 20-2418
Manufacturer Traco Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 48V 20W / Enclosed DC DC Converter 1 Output 48V 420mA 36V Input
Datasheet
TMDC 20-2418 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 1
Voltage - Output 1 48V
Current - Output (Max) 420mA
Power (Watts) 20W
Voltage - Isolation 2.5 kV
Applications ITE (Commercial)
Efficiency 89%
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Mounting Chassis Mount
Size / Dimension 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.1mm x 23.4mm)
Approval Agency CB, CE, cURus
Base Product Number TMDC 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMDC 20-2418-ND,TMDC20-2418
Standard Package 10
Win Source Part Number 1336059-TMDC 20-2418
Ultra Librarian 3D Model Ultra Librarian TMDC 20-2418 CAD Model

Description

The Traco Power 1336059-TMDC 20-2418 is an enclosed DC-DC converter with a power of 20W and a voltage isolation of 2.5 kV.

  • Current Output: 420mA
  • Voltage Input Range: 9V to 36V
  • Operating Temperature: -40°C to 90°C (with derating)
  • Approvals: CB, CE, and cURus
