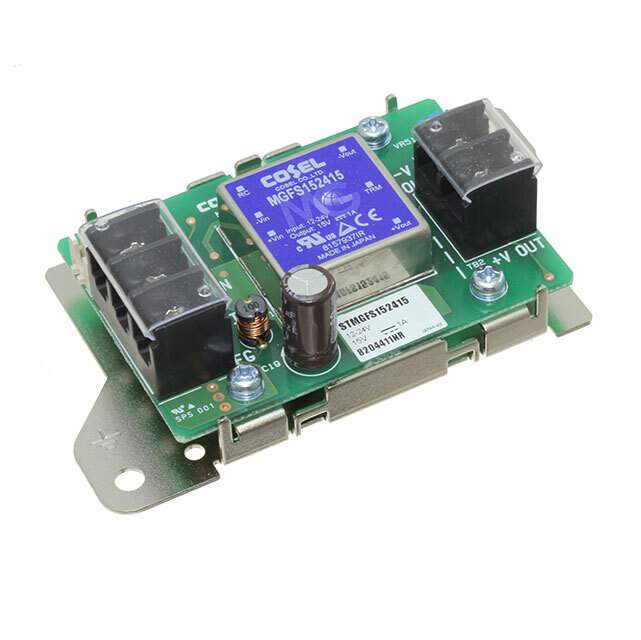

STMGFW152415-G Real Image
Same model may have multiple batches, images only for reference.

STMGFW152415-G

Part No STMGFW152415-G
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER +/-15V 15W / Open Frame DC DC Converter 2 Output 15V -15V 500mA, 500mA 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr Cosel USA, Inc.
Series STMGFW (15W)
Package Box
Type Open Frame
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 2
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 500mA, 500mA
Power (Watts) 15W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Efficiency 89%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm)
Approval Agency CE
Base Product Number STMGFW152415
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1349552-STMGFW152415-G
Ultra Librarian 3D Model Ultra Librarian STMGFW152415-G CAD Model

Description

The Cosel USA, Inc. STMGFW152415-G is a 15W open-frame DC-DC converter that comes with two outputs.

  • Series: STMGFW (15W)
  • Applications: ITE (Commercial)
  • Voltage - Isolation: 1.5 kV
  • Current - Output 1: 500mA
  • Current - Output 2: 500mA
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 15V
  • Voltage - Output 2: -15V
  • Efficiency: 89%
  • Mounting Type: Chassis Mount
  • Package: Box
  • Operating Temperature: -20°C ~ 70°C (With Derating)
  • MSL (Moisture Sensitivity Level): Not Applicable
  • HTSUS: 8504.40.9580
  • Standard Package: 1
  • Approvals: CE
  • Warning: California Prop 65

You May Also Be Interested in

TMDC 60-4811 Real Image
TMDC 60-4811
Traco Power
DC/DC CONVERTER 5.1V 61W / Enclosed DC DC Converter 1 Output 5.1V 12A 75V Input
Need more? Email Us
CHS1202412 Real Image
CHS1202412
Cosel USA, Inc.
DC DC CONVERTER 12V 120W
Need more? Email Us
PAH50S48-12/P Real Image
PAH50S48-12/P
TDK-Lambda Americas Inc.
DC DC CONVERTER 12V 50W
Need more? Email Us
TMDC 60-2411 Real Image
TMDC 60-2411
Traco Power
DC/DC CONVERTER 5.1V 61W / Enclosed DC DC Converter 1 Output 5.1V 12A 36V Input
Need more? Email Us

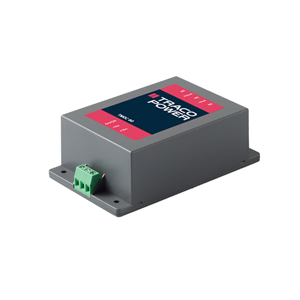

TMDC 60-4812 Real Image
TMDC 60-4812
Traco Power
DC/DC CONVERTER 12V 60W / Enclosed DC DC Converter 1 Output 12V 5A 75V Input
Need more? Email Us

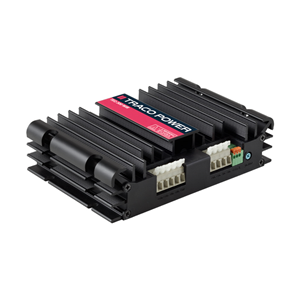

TEQ 300-7215WIR Real Image
