Same model may have multiple batches, images only for reference.

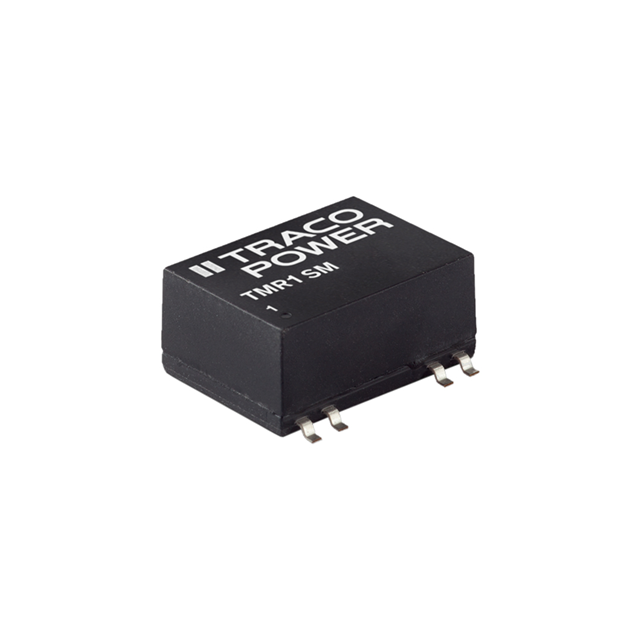

TMR 1-0513SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-0513SM

Part No TMR 1-0513SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 9V Input
Datasheet
TMR 1-0513SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 81%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR 1-0513SM-ND,TMR1-0513SM
Standard Package 10
Win Source Part Number 1336115-TMR 1-0513SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-0513SM CAD Model

Description

The Traco Power TMR 1-0513SM is a DC-DC converter module with an output of 15V and a power output of 1W.

  • Features: Remote on/off, over-current protection, and short-circuit protection
  • Efficiency: 81%
  • Isolation Voltage: 1.5 kV
  • Mounting Style: Surface mount
  • Application: ITE (Commercial) applications
  • Operating Temperature Range: -40°C to 82°C (with derating)
  • Dimensions: 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
  • Compliance: ROHS3 compliant
  • Packaging: Tube
  • Standard Package: 10
