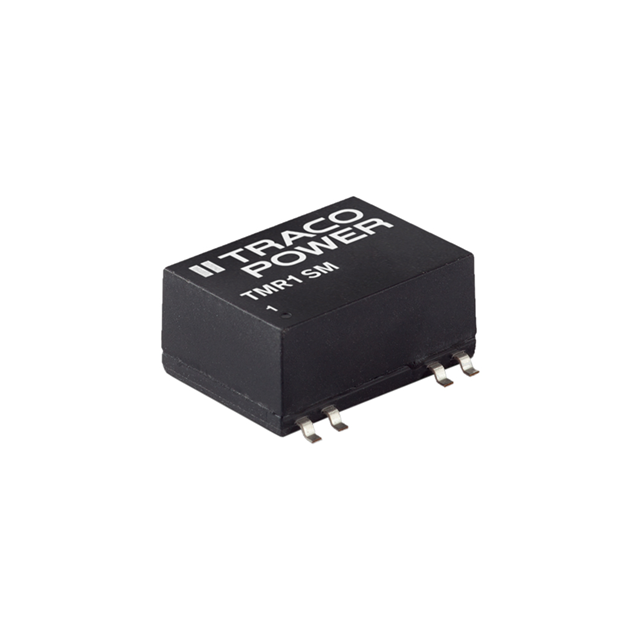

TMR 1-2423SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-2423SM

Part No TMR 1-2423SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 990MW / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 18V - 36V Input
Datasheet
TMR 1-2423SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 990 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 82%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1985,7613441031378
Standard Package 10
Win Source Part Number 1336160-TMR 1-2423SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-2423SM CAD Model

Description

Traco Power's TMR 1-2423SM is an isolated module DC-DC converter with 990mW power.

  • Voltage Isolation: 1.5 kV
  • Output Voltage 1: 15V
  • Output Voltage 2: -15V
  • Current Output 1: 33mA
  • Current Output 2: 33mA
  • Input Voltage Range: 18V to 36V
  • Features: Remote on/off, overcurrent protection (OCP) and short circuit protection (SCP)
  • Efficiency: 82%
  • Package: 14-SMD module, 7 leads package
  • REACH: Unaffected
