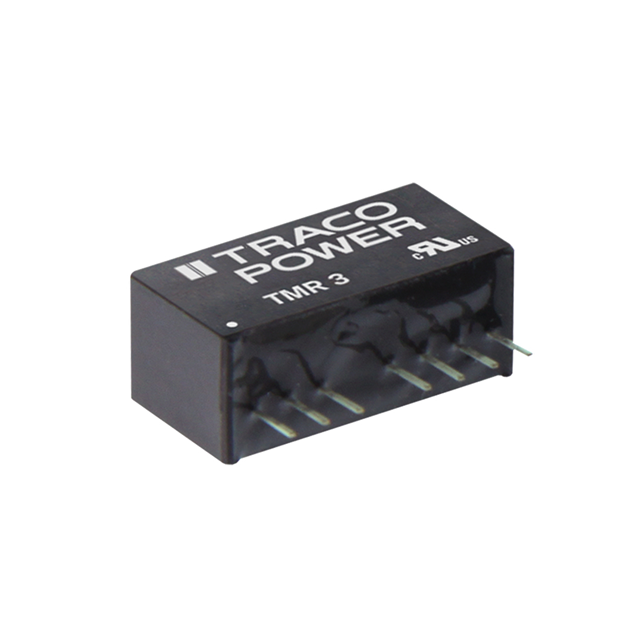

Same model may have multiple batches, images only for reference.

TMR 3-0521

Name: TMR 3-0521
Brand: Traco Power
SKU: 1336181
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMR 3-0521
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 4.5V - 9V Input
Datasheet	TMR 3-0521 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	78%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number	TMR 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR3-0521,1951-3195,TMR 3-0521-ND,TMR3-0521-ND
Standard Package	10
Win Source Part Number	1336181-TMR 3-0521
Ultra Librarian 3D Model	Ultra Librarian TMR 3-0521 CAD Model

Alternative Products

Description

The TMR 3-0521 is an isolated module type DC DC converter manufactured by Traco Power.

Power Output: 3W
Voltage Isolation: 1.6kV
Supply and Demand: Balanced
Features: Remote on/off and SCP
Application: ITE (Commercial) applications
