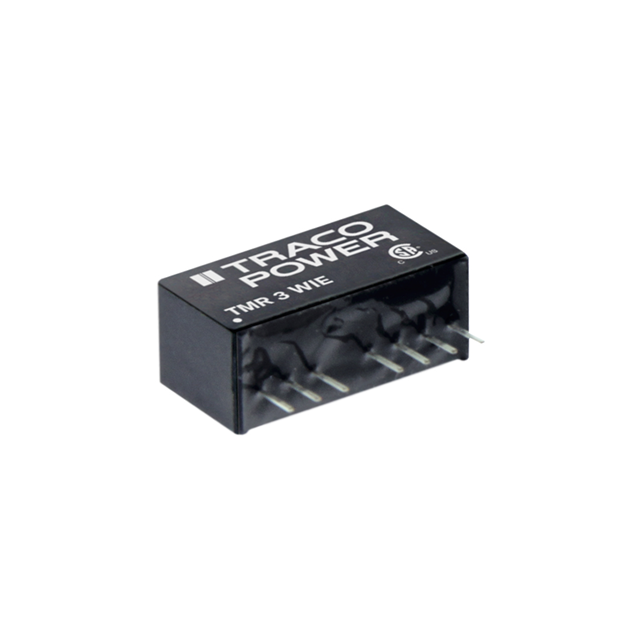

Same model may have multiple batches, images only for reference.

TMR 3-4821WIE

Name: TMR 3-4821WIE
Brand: Traco Power
SKU: 1336230
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMR 3-4821WIE
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 75V Input
Datasheet	TMR 3-4821WIE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	79%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number	TMR 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR3-4821WIE,TMR 3-4821WIE-ND
Standard Package	10
Win Source Part Number	1336230-TMR 3-4821WIE
Ultra Librarian 3D Model	Ultra Librarian TMR 3-4821WIE CAD Model

Alternative Products

Description

This DC DC converter from Traco Power is designed for use in Power Supplies - Board Mount>DC DC Converters.

Packaging: Tube
Type: Isolated module
Features: Remote On/Off and SCP
Size: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Application: ITE (Commercial)
Standard Package: 10
Mounting: Through hole
Power: 3 W
Voltage Isolation: 1.5 kV
Outputs: Two
Maximum Current Output: 300mA (both outputs)
Voltage Input: 18V to 75V
Voltage Output 1: 5V
Voltage Output 2: -5V
Efficiency: 79%
Temperature Range: -40°C ~ 85°C (With Derating)
Case/Package: 8-SIP Module, 7 Leads
MSL Level: Not applicable
REACH Status: REACH unaffected
HTSUS: 8504.40.9580
Other Part Numbers: TMR3-4821WIE, TMR 3-4821WIE-ND
Base Product Number: TMR 3
ROHS3 Compliant: Yes
