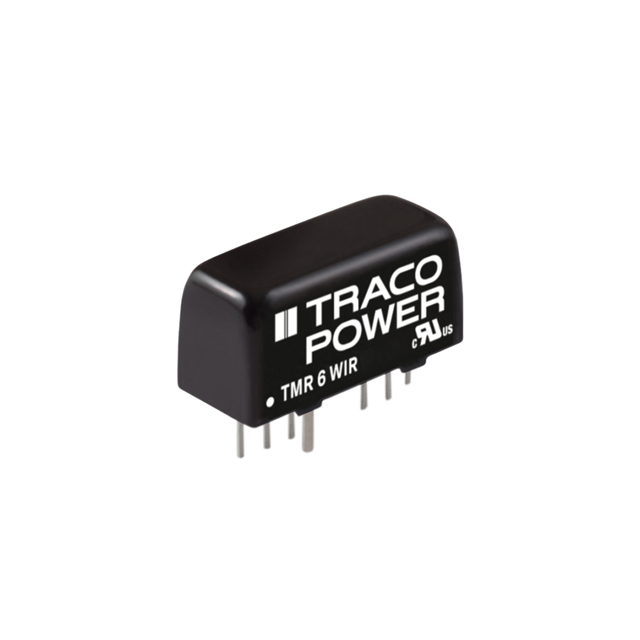

Same model may have multiple batches, images only for reference.

TMR 6-4821WIR

Name: TMR 6-4821WIR
Brand: Traco Power
SKU: 1336275
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMR 6-4821WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 6W / Isolated Module DC DC Converter 2 Output 5V -5V 600mA, 600mA 18V - 75V Input
Datasheet	TMR 6-4821WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	600mA, 600mA
Power (Watts)	6 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	8-SIP Module
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number	TMR 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2028
Standard Package	10
Win Source Part Number	1336275-TMR 6-4821WIR
Ultra Librarian 3D Model	Ultra Librarian TMR 6-4821WIR CAD Model

Alternative Products

Description

The Traco Power TMR 6-4821WIR is a 6W isolated module DC-DC converter designed for use in ITE (Commercial) and Railway applications.

Features: Remote on/off, OCP, and SCP
Voltage Isolation: 3 kV
Outputs: Two
Maximum Output Currents: 600mA and -600mA
Output Voltages: 5V and -5V, respectively
Input Voltage: 18V to 75V
Efficiency: 84%
Operating Temperature: -40°C to 80°C
Package Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Mounting: Through hole
Compliance: ROHS3 compliant
Package: 8-SIP module
