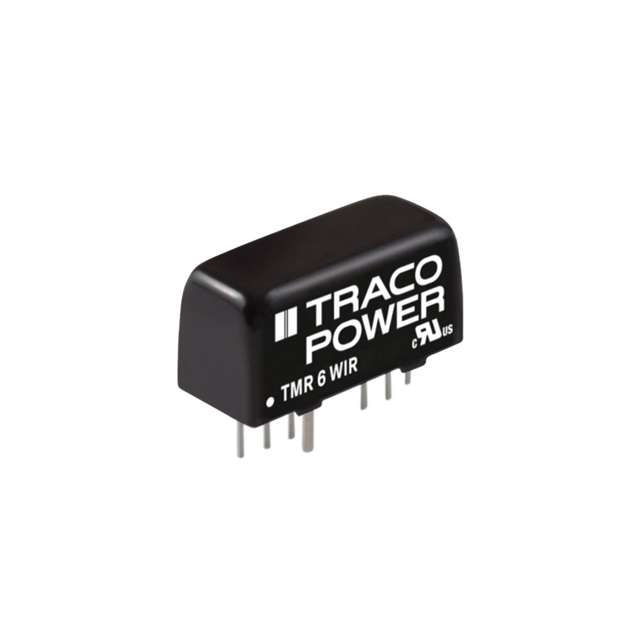

Same model may have multiple batches, images only for reference.

TMR 6-4823WIR

Name: TMR 6-4823WIR
Brand: Traco Power
SKU: 1336274
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TMR 6-4823WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 18V - 75V Input
Datasheet	TMR 6-4823WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Power (Watts)	6 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 80°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	8-SIP Module
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number	TMR 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2030
Standard Package	10
Win Source Part Number	1336274-TMR 6-4823WIR
Ultra Librarian 3D Model	Ultra Librarian TMR 6-4823WIR CAD Model

Alternative Products

Description

The Traco Power TMR 6-4823WIR is a DC-DC converter module that offers an output power of 6 W and an efficiency of 87%.

Applications: ITE (Commercial) and Railway
Features: Remote on/off, overcurrent protection (OCP), and short-circuit protection (SCP)
Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Mounting: Through hole
Voltage Isolation: 3 kV
Outputs: Four
Maximum Current: Two outputs delivering 200mA each
Output Voltages: Two outputs delivering 15V and -15V respectively
Input Voltage Range: 18V to 75V
Operating Temperature: -40°C to 80°C (with derating)
Compliance: ROHS3 compliant
Package: 8-SIP module
