Same model may have multiple batches, images only for reference.

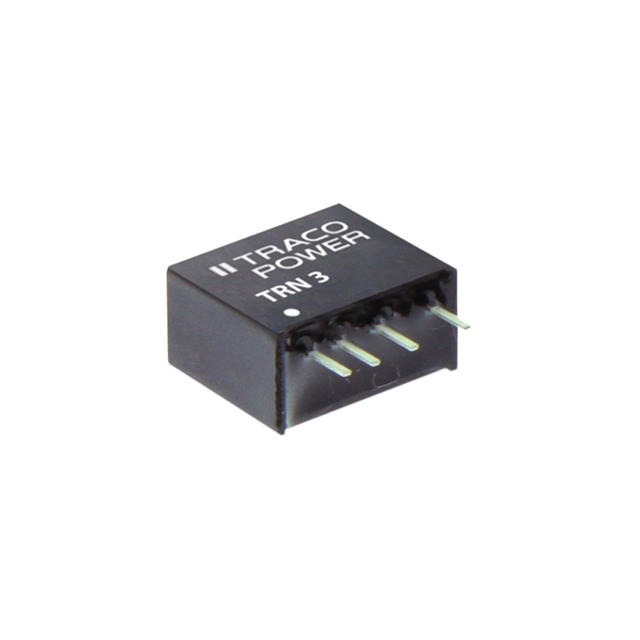

TRN 3-2422 Real Image
Same model may have multiple batches, images only for reference.

TRN 3-2422

Part No TRN 3-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet
TRN 3-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting Through Hole
Case / Package 5-SIP Module
Size / Dimension 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 3-2422-ND,2266-TRN 3-2422,TRN3-2422
Standard Package 10
Win Source Part Number 1336372-TRN 3-2422
Ultra Librarian 3D Model Ultra Librarian TRN 3-2422 CAD Model

Description

The Traco Power 1336372-TRN 3-2422 is a DC-DC converter designed to provide a stable and isolated power source for ITE (Commercial) applications.

  • Outputs: Two
  • Maximum Output Current: 125mA each
  • Input Voltage Range: 18V to 36V
  • Package: 5-SIP module
  • Size: 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
  • Efficiency: 83%
  • Protection: SCP (Short Circuit Protection)
  • Isolation Voltage: 1.6 kV
  • ROHS3 Compliant: Yes
  • Packaging: Tube
  • Standard Package: 10
