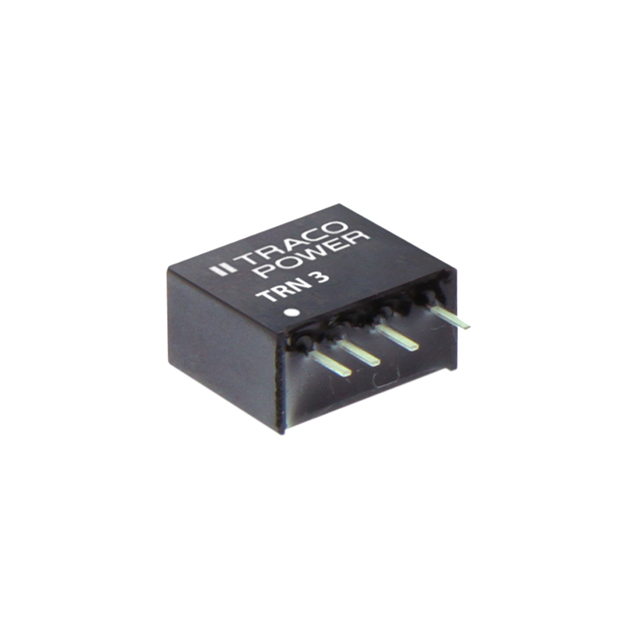

The Traco Power Isolated Module is a DC DC Converter that is designed to deliver high performance and features SCP.

• Power: 3W
• Voltage Isolation: 1.6 kV
• Size/Dimension: 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
• Mounting: Through hole
• Category: Power Supplies - Board Mount>DC DC Converters
• Application: ITE (Commercial) applications
• Standard Package: 10
• Current-Output (Max): 600mA
• Voltage-Input (Min): 36V
• Voltage-Input (Max): 75V
• Voltage-Output 1: 5V
• Voltage-Output 2: N/A
• Voltage-Output 3: N/A
• Efficiency: 79%
• Voltage-Output 4: N/A
• Temperature Range: -40°C ~ 85°C
• Case/Package: 5-SIP Module, 4 Leads
• Compliance: ROHS3 compliant
• ECCN: EAR99
• REACH: Unaffected
• HTSUS: 8504.40.9580
• Other part numbers: TRN 3-4811-ND, 2266-TRN 3-4811, and TRN3-4811
• Base product number: TRN 3
