Same model may have multiple batches, images only for reference.

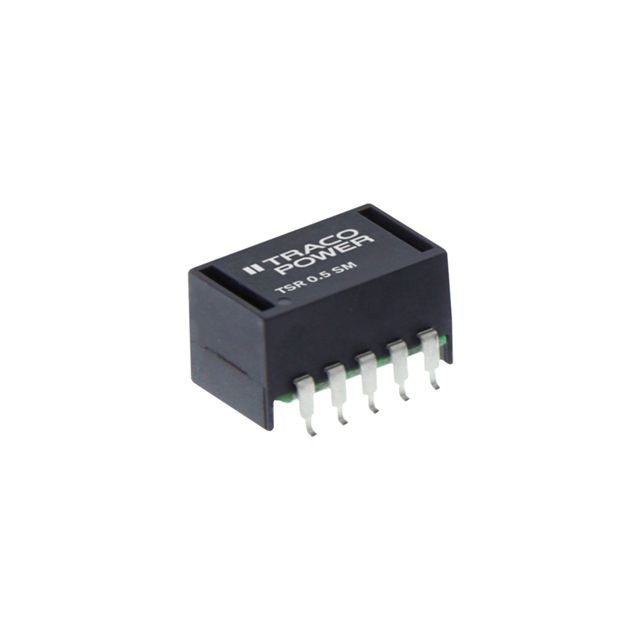

TSR 0.5-24120SM Real Image
Same model may have multiple batches, images only for reference.

TSR 0.5-24120SM

Part No TSR 0.5-24120SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 6W / Linear Regulator Replacement DC DC Converter 1 Output 12V 500mA 15V - 32V Input
Datasheet
TSR 0.5-24120SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 15V
Voltage - Input (Max) 32V
Voltage - Output 1 12V
Current - Output (Max) 500mA
Power (Watts) 6 W
Applications ITE (Commercial)
Features Remote On/Off, OTP, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 97%
Mounting Surface Mount
Case / Package 10-SMD Module
Size / Dimension 0.60" L x 0.38" W x 0.36" H (15.3mm x 9.6mm x 9.2mm)
Base Product Number TSR 0.5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TSR0.5-24120SM,TSR 0.5-24120SM-ND
Standard Package 10
Win Source Part Number 1336419-TSR 0.5-24120SM
Ultra Librarian 3D Model Ultra Librarian TSR 0.5-24120SM CAD Model

Description

The Traco Power TSR 0.5-24120SM is a DC-DC converter from Traco Power that is designed to provide a linear regulator replacement.

  • Power Rating: 6W
  • Maximum Output Current: 500mA
  • Voltage Input: 15V to 32V
  • Voltage Output: 12V
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 90°C
  • Size: 0.60" L x 0.38" W x 0.36" H (15.3mm x 9.6mm x 9.2mm)
  • Packaging: Tube
