Same model may have multiple batches, images only for reference.

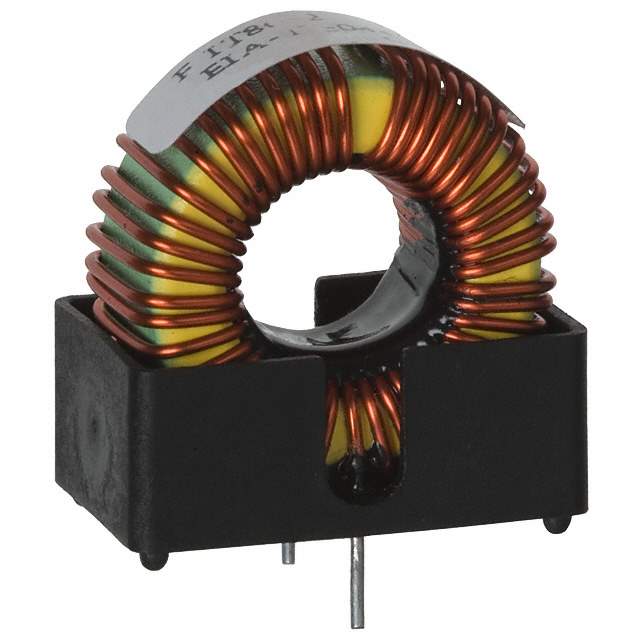

FIT80-5 Real Image
Same model may have multiple batches, images only for reference.

FIT80-5

Part No FIT80-5
Manufacturer Triad Magnetics
Catalog Fixed Inductors
Description FIXED IND 47.7UH 8.1A 22.5 MOHM
Datasheet
FIT80-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Triad Magnetics
Packaging Bulk
Status Active
Type Toroidal
Material - Core Powdered Iron
Inductance 47.7μH
Current Rating 8.1A
DC Resistance (DCR) 22.5 mOhm Max
Frequency - Test 10kHz
Mounting Through Hole
Height - Seated (Max) 1.100" (27.94mm)
Win Source Part Number 1021874-FIT80-5
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FIT80-5 CAD Model

Description

The FIT80-5 is a toroidal inductor from Triad Magnetics.

  • Current Rating: 8.1A
  • Inductance: 47.7μH
  • Height: 1.100"
  • Mounting Type: through a hole
  • Core Material: powdered iron
  • DC Resistance: 22.5 mOhm Max
  • Status: active
  • Supply and Demand Status: sufficient
