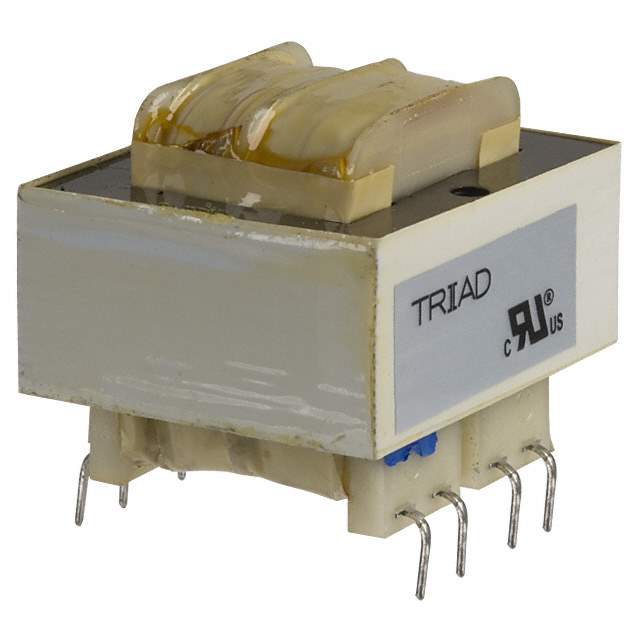

FS16-400 Real Image
Same model may have multiple batches, images only for reference.

FS16-400

Part No FS16-400
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 6VA TH /
Datasheet
FS16-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Series Split Pack™
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Current - Output (Max) Parallel 800mA, Series 400mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 6VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 41.28mm L x 33.32mm W
Height - Seated (Max) 33.32mm
Voltage - Isolation 2500Vrms
Weight 0.44 lb (199.58 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names FS16400,237-1040,237-1040-NDR,10454
Standard Package 1
Win Source Part Number 1148407-FS16-400
Ultra Librarian 3D Model Ultra Librarian FS16-400 CAD Model

Description

The FS16-400 is a laminated core power transformer manufactured by Triad Magnetics.

  • Application: Power supply circuits, audio equipment, and other electronic devices that require voltage transformation
  • Design: Split Pack
  • Maximum Power: 6VA
  • Voltage Isolation: 2500Vrms
  • RoHS Compliant: Yes
  • Mounting Type: Through-Hole
