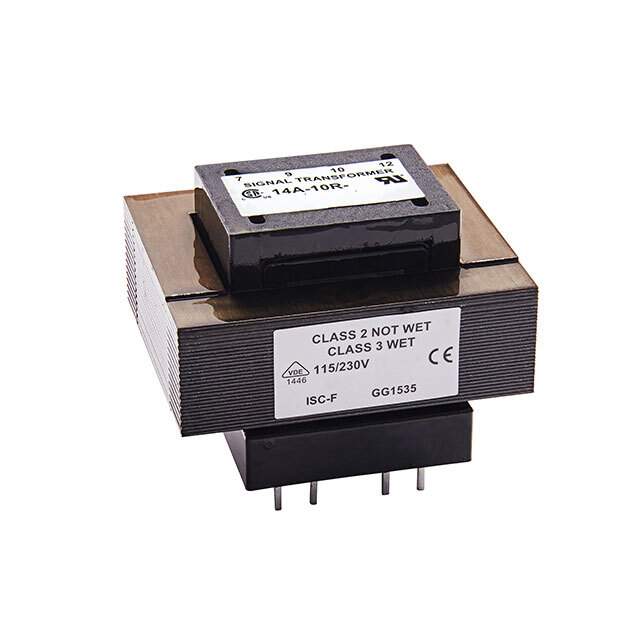

14A-10R-16 Real Image
Same model may have multiple batches, images only for reference.

14A-10R-16

Part No 14A-10R-16
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 10VA TH
Datasheet
14A-10R-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Manufacturer Signal Transformer
Packaging Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Current - Output (Max) Parallel 1.25A, Series 620mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 10VA
Mounting Through Hole
Termination Style PC Pin
Size / Dimension 47.60mm L x 39.70mm W
Height - Seated (Max) 34.90mm
Voltage - Isolation 4000Vrms
Weight 0.53 lb (240.4 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Part Number 595-1008,Q5809797,14A10R16
Standard Package 50
Win Source Part Number 1330798-14A-10R-16
Ultra Librarian 3D Model Ultra Librarian 14A-10R-16 CAD Model

Description

The 1330798-14A-10R-16 is a power transformer with a laminated core and PC pin termination style. It has a maximum power of 10VA and can handle an output current of up to 1.25A in parallel and 620mA in series. The voltage isolation is 4000Vrms and the voltage primary can be 115V or 230V. The voltage secondary can be 8V in parallel and 16V in series. The device has a dual primary and secondary winding. The transformer can operate in a temperature range of -40°C to 85°C. This transformer is ideal for applications such as power supplies, lighting, and audio equipment.
