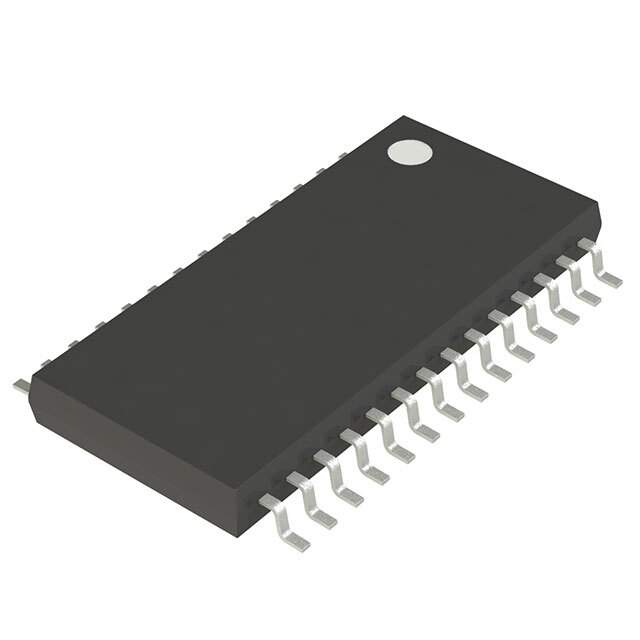

TMC2225-SA-T Real Image
Same model may have multiple batches, images only for reference.

TMC2225-SA-T

Part No TMC2225-SA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV 4.75-36V HTSSOP28
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 27 Weeks
Features Bipolar Motor Driver Power MOSFET SPI, Step/Direction, UART 28-HTSSOP
Manufacturer Trinamic Motion Control GmbH
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Case / Package 28-HTSSOP
MSL Level 3 (168 Hours)
Other Part Number 1460-TMC2225-SA-TCT, 1460-TMC2225-SA-TDKR, 1460-TMC2225-SA-TTR
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936995-TMC2225-SA-T
Ultra Librarian 3D Model Ultra Librarian TMC2225-SA-T CAD Model

Description

The TMC2225-SA-T is a bipolar motor driver with power MOSFET, SPI, step/direction, and UART features. The device is manufactured by Trinamic Motion Control GmbH and is packaged in a 28-HTSSOP case with an exposed pad.

  • Features: power MOSFET, SPI, step/direction, and UART
  • Manufacturer: Trinamic Motion Control GmbH
  • Package: 28-HTSSOP case with an exposed pad
  • Operating Temperature Range: -40°C to 125°C
  • Supplied: Reel of 4000 units
  • MSL Level: 3 (168 hours)
  • Estimated Production Lead Time: 27 weeks
