Same model may have multiple batches, images only for reference.

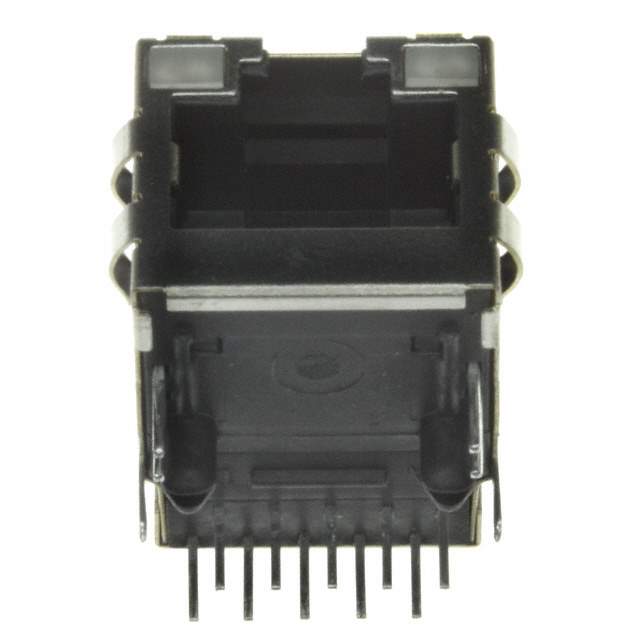

6605814-6 Real Image
Same model may have multiple batches, images only for reference.

6605814-6

Part No 6605814-6
Manufacturer TRP Connector B.V.
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 1000 BASE-T
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TRP Connector B.V.
Packaging Tray
Part Status Obsolete (End Of Life)
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.555" (14.10mm)
LED Color Green, Yellow - Green, Yellow
Number of Cores per Jack 12
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 50.0μin (1.27μm)
Shield Material Brass
Housing Material Polyethylene Terephthalate (PET), Polyester
Manufacturer Pack Quantity 385
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814226-6605814-6
Ultra Librarian 3D Model Ultra Librarian 6605814-6 CAD Model

Description

The TRP Connector B.V. RJ45 Connector is a shielded, EMI finger connector used in 10/100/1000 Base-T applications.

  • Orientation: Right Angle
  • Tab Direction: Up
  • Height Above Board: 0.555" (14.10mm)
  • Mounting Type: Through Hole
  • Manufacturer Pack Quantity: 385
  • RoHS Compliance: Yes
  • Supply and Demand Status: Limited
