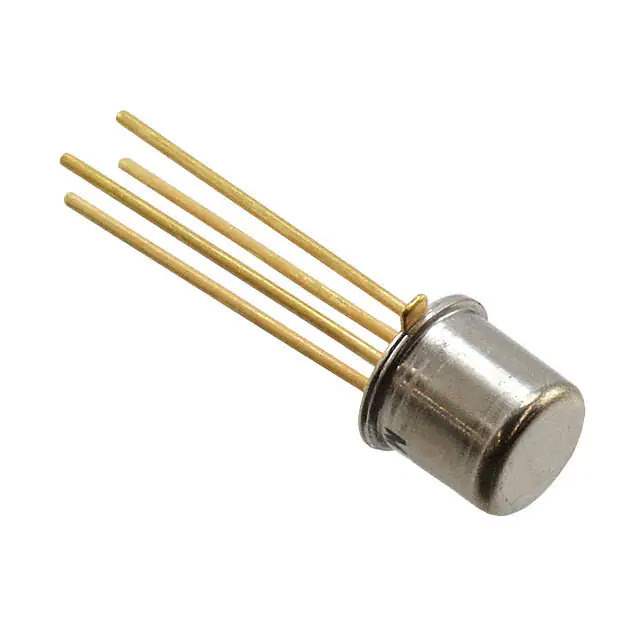

3C92C

Name: 3C92C
Brand: TT Electronics
SKU: 545679
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	3C92C
Manufacturer	TT Electronics
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 1KV TRANS TO72-4
Datasheet	3C92C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	TT Electronics
Package	Bulk
Product Status	Active
Number of Channels	1
Voltage - Isolation	1000VDC
Current Transfer Ratio (Min)	30% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	9µs, 6µs (Max)
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	50V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-206AF, TO-72-4 Metal Can
Supplier Device Package	TO-72-4
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	545679-3C92C
Ultra Librarian 3D Model	Ultra Librarian 3C92C CAD Model

Description

The 545679-3C92C is a transistor optoisolator designed for DC input from TT Electronics.

Current Transfer Ratio: 30% @ 10mA
Voltage Isolation: 1000VDC
Current Output: 30mA
Maximum Voltage Output: 50V
Package: Bulk (100 pieces)
Package Type: TO-206AF, TO-72-4 metal can
Temperature Range: -55°C to 125°C
Turn-On Time: 9μs
Turn-Off Time: 6μs
Product Category: Isolators and Optoisolators
REACH: Unaffected
ECCN: EAR99
