Same model may have multiple batches, images only for reference.

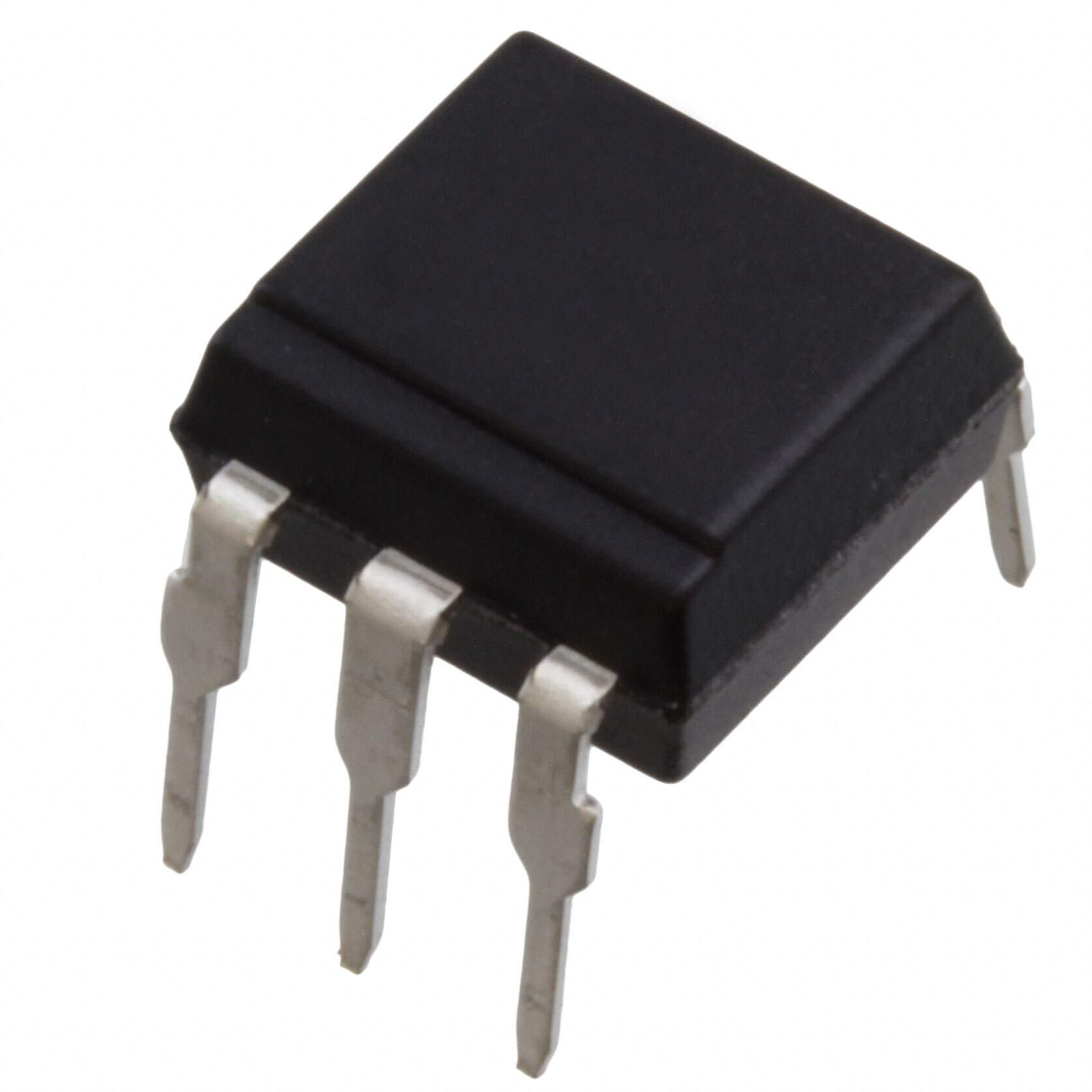

4N35-X000 Real Image
Same model may have multiple batches, images only for reference.

4N35-X000

Part No 4N35-X000
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler, Phototransistor Output, with Base Connection | OPTOISO 5KV TRANS W/BASE 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 100% at 10mA
Turn On / Turn Off Time 10μs, 10μs
Input Type DC
Output Type Transistor with Base
Maximum Output Voltage 30V
Current - Output / Channel 50mA
Voltage - Forward (Vf) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Family Part Number 4N35
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1128864-4N35-X000
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4N35-X000 CAD Model

Description

The Vishay 4N35-X000 is a through-hole mounted optocoupler that is designed for use in isolators.

  • Package: 6-DIP
  • Input Type: DC
  • Current Output/Channel: 50mA
  • Isolation Voltage: 5000Vrms
  • Temperature Range: -55°C to 100°C
  • Maximum Output Voltage: 30V
  • Current Transfer Ratio: 100% @ 10mA
  • Maximum Forward Voltage: 1.2V
  • Popularity: popular
  • Supply and Demand Status: balanced
