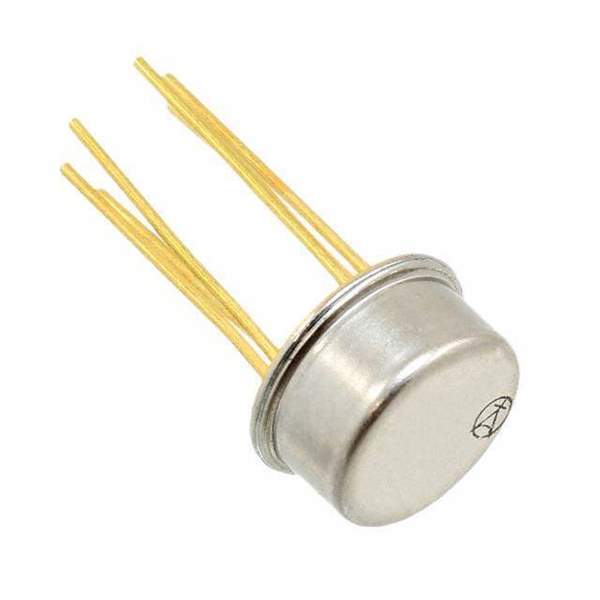

JANTXV4N49A Real Image
Same model may have multiple batches, images only for reference.

JANTXV4N49A

Part No JANTXV4N49A
Manufacturer TT Electronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1KV TRANS W/BASE TO78-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Status Active
Number of Channels 1
Isolation Voltage 1000VDC
Minimum DC Current Transfer Ratio 200% @ 1mA
Maximum DC Current Transfer Ratio 1000% @ 1mA
Rise and Fall Time 20μs, 20μs (Max)
Input Type DC
Maximum Output Voltage 40V
Channel Output Current 50mA
Forward Voltage 1.5V (Max)
Continuous forward current- Max 40mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Case / Package TO-78-6
Win Source Part Number 142542-JANTXV4N49A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANTXV4N49A CAD Model

Description

The JANTXV4N49A is a DC input optocoupler manufactured by TT Electronics/Optek Technology.

  • Channel Count: one channel
  • Mounting Type: through-hole
  • Forward Voltage: 1.5V (Max)
  • Isolation Voltage: 1000VDC
  • DC Current Transfer Ratio: 200% (Min) and 1000% (Max) @ 1mA
  • Temperature Range: -55°C to 125°C
  • Packaging: TO-78-6 case
  • Rise and Fall Time: 20μs (Max)
  • Maximum Output Voltage: 40V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 40mA
  • Category: Isolators
