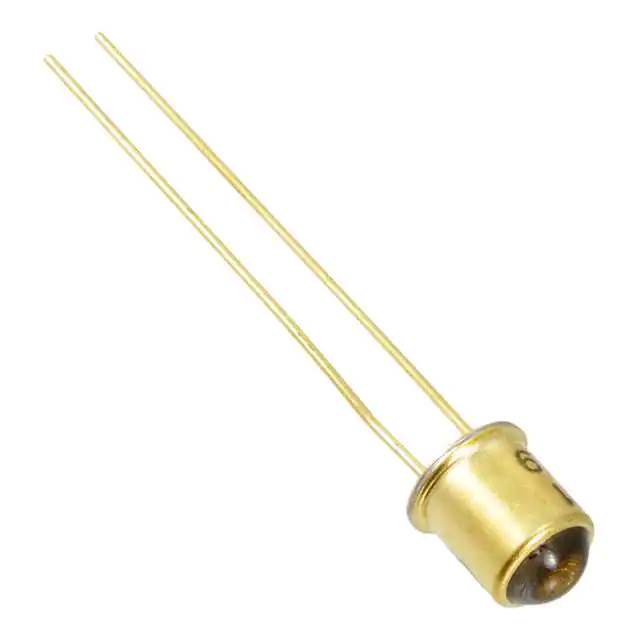

OP132 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr TT Electronics
Package Bulk
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 4mW/cm² @ 100mA
Wavelength 935nm
Voltage - Forward (Vf) (Typ) 1.75V
Viewing Angle 18°
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case TO-46-2 Lens Top Metal Can
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 650360-OP132
Ultra Librarian 3D Model Ultra Librarian OP132 CAD Model

Description

The 650360-OP132 is an infrared (IR) LED emitter with a wavelength of 935nm manufactured by TT Electronics.

  • Wavelength: 935nm
  • Viewing Angle: 18 degrees
  • Forward Voltage (Vf): 1.75V
  • Current Rating (DC Forward): 100mA
  • Radiant Intensity: 4mW/cm² @ 100mA
  • Mounting Type: through-hole
  • Package: TO-46-2 lens top metal can
  • Operating Temperature: -65°C to 125°C
  • Category: optoelectronics - LED emitters - infrared, UV, visible
  • Status: active
  • REACH: unaffected
