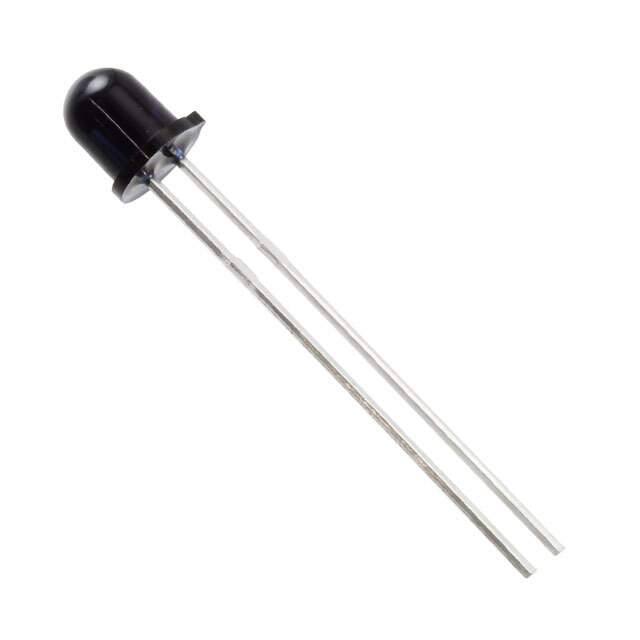

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Power - Max 250 mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C
Case / Package TO-18-2
Base Product Number OP593
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Part Number 365-1074,2266-OP593A
Standard Package 500
Win Source Part Number 1336644-OP593A
Ultra Librarian 3D Model Ultra Librarian OP593A CAD Model

Description

The TT Electronics/Optek Technology phototransistor is a high-quality electronic component designed for use in optical sensors.

  • Package: TO-18-2
  • Orientation: Top View
  • Maximum Power: 250mW
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Current Rating: 50mA
  • Dark Current Rating: 100nA
  • Temperature Range: -40°C to 100°C
  • Viewing Angle: 0°
  • RoHS Compliant: Yes
  • REACH: Unaffected
