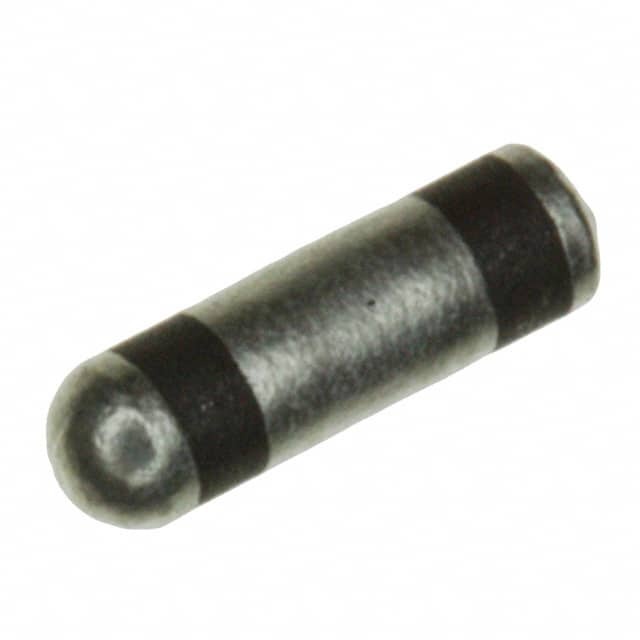

Same model may have multiple batches, images only for reference.
4700-056MLF
Same model may have multiple batches, images only for reference.

4700-056MLF

Part No 4700-056MLF
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 0.1UH/5000PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 11 Weeks
Features LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1µH, C = 5000pF 10 Pill, Round
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Series 4700
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package Pill, Round
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 410-1198-2, 410-1198-1, 4700056MLF, 4700-056LF, 410-1198-6
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906934-4700-056MLF
Ultra Librarian 3D Model Ultra Librarian 4700-056MLF CAD Model

Description

Tusonix LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1µH, C = 5000pF 10 Pill, Round is a high-quality filter used in various electronic devices.

  • 4700 series:
  • packaging: reel - TR
  • mounting: surface
  • package: pill, round
  • filters: categorized under
  • ECCN: EAR99
  • popularity: high
  • supply and demand status: balanced
  • package contains: 2000 pieces
  • MSL level: 1 (Unlimited)
  • estimated production lead time: 11 weeks
  • HTSUS code: 8548.90.0100
  • other part numbers: 410-1198-2, 410-1198-1, 4700056MLF, 4700-056LF, 410-1198-6
