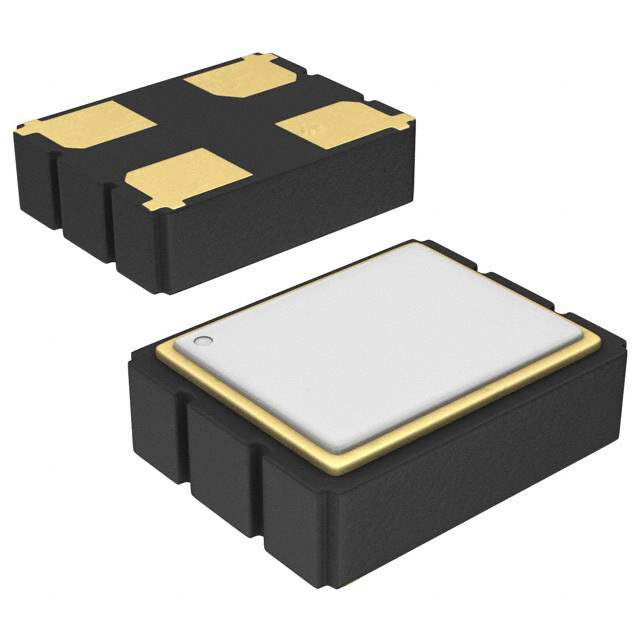

7XZ-32.768KDE-T Real Image
Same model may have multiple batches, images only for reference.

7XZ-32.768KDE-T

Part No 7XZ-32.768KDE-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
7XZ-32.768KDE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7XZ
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349067-7XZ-32.768KDE-T
Ultra Librarian 3D Model Ultra Librarian 7XZ-32.768KDE-T CAD Model

Description

The TXC Corporation 7XZ-32.768KDE-T is a crystal oscillator from the 7XZ series.

  • Frequency: 32.768 kHz
  • Frequency Stability: ±50ppm
  • Mounting Type: Surface Mount
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Base Resonator: Crystal
