Same model may have multiple batches, images only for reference.

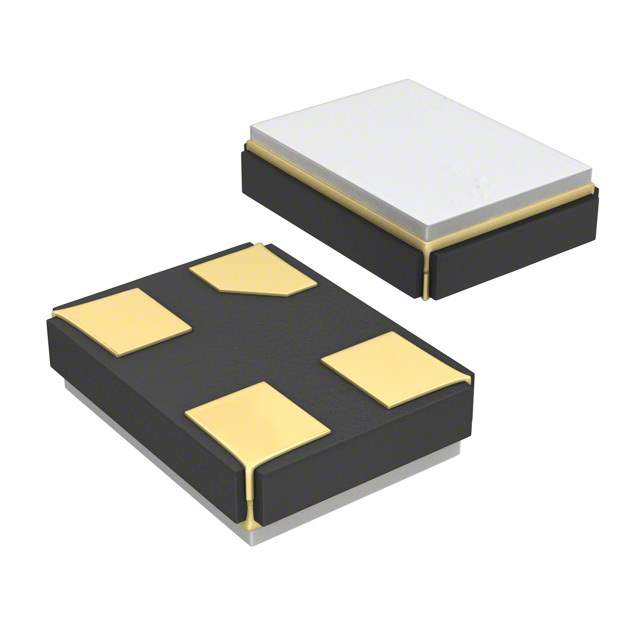

8Z-24.000MEEQ-T Real Image
Same model may have multiple batches, images only for reference.

8Z-24.000MEEQ-T

Part No 8Z-24.000MEEQ-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±10ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
8Z-24.000MEEQ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 887-1338-6,887-1338-2,887-1338-1,8Z24000MEEQT
Standard Package 3,000
Win Source Part Number 1328368-8Z-24.000MEEQ-T
Ultra Librarian 3D Model Ultra Librarian 8Z-24.000MEEQ-T CAD Model

Description

The 8Z series crystal from TXC CORPORATION is a 4-SMD, no-lead crystal with a frequency of 24 MHz.

  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • Packaging: reel-TR
  • Mounting: Surface Mount
  • ESR: 100 Ohms
  • Load Capacitance: 10pF
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.60.0060
