Same model may have multiple batches, images only for reference.

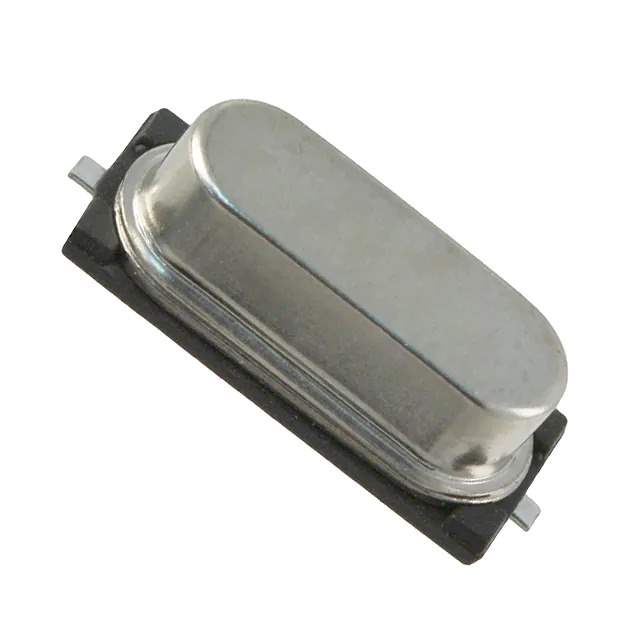

9C03600039 Real Image
Same model may have multiple batches, images only for reference.

9C03600039

Part No 9C03600039
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 3.6864MHZ 18PF SMD
Datasheet
9C03600039 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9C
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 150 Ohms
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 858731-9C03600039
Ultra Librarian 3D Model Ultra Librarian 9C03600039 CAD Model

Description

The 858731-9C03600039 is a MHz crystal oscillator from the 9C series. With a compact HC-49/US package, this crystal offers stable and accurate frequency generation.

  • Series: 9C
  • Frequency: 3.6864 MHz
  • Frequency Tolerance: ±50ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 18pF
  • Temperature Range: -10°C to 60°C
  • Manufacturer: TXC CORPORATION
  • Product Status: Obsolete
  • Package: HC-49/US
