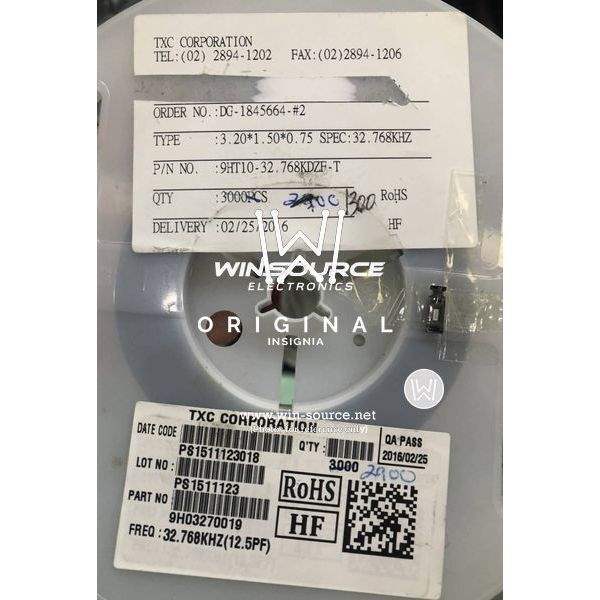

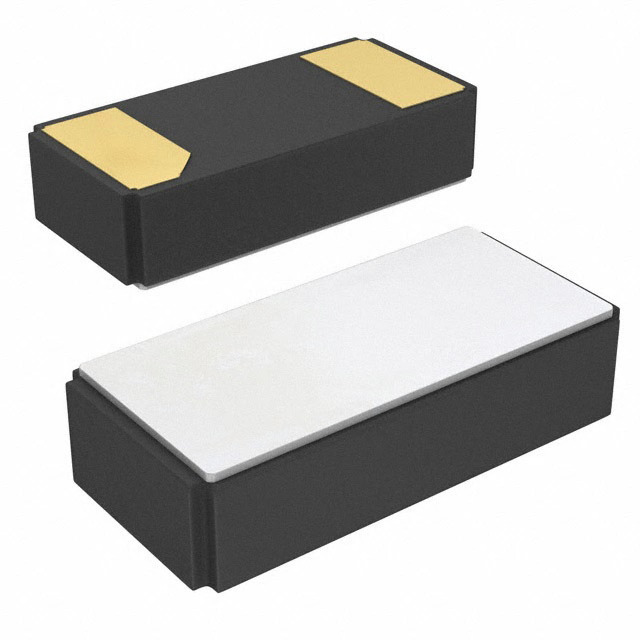

9HT10-32.768KDZF-T TXC CORPORATION 9HT10-32.768KDZF-T Real Image 9HT10-32.768KDZF-T label picture
Same model may have multiple batches, images only for reference.
9HT10-32.768KDZF-T TXC CORPORATION 9HT10-32.768KDZF-T Real Image 9HT10-32.768KDZF-T label picture
9HT10-32.768KDZF-T TXC CORPORATION 9HT10-32.768KDZF-T Real Image 9HT10-32.768KDZF-T label picture
Same model may have multiple batches, images only for reference.

9HT10-32.768KDZF-T

Part No 9HT10-32.768KDZF-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Datasheet
9HT10-32.768KDZF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TXC CORPORATION
Packaging Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Maximum) 0.033" (0.85mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807843-9HT10-32.768KDZF-T
Ultra Librarian 3D Model Ultra Librarian 9HT10-32.768KDZF-T CAD Model

Description

The TXC CORPORATION kHz Crystal (Tuning Fork) is a high-quality crystal.

  • Packaging: Reel
  • Mounting Style: SMD
  • Frequency: 32.768kHz
  • ESR: 70 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12.5pF
  • Mode: Fundamental
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Height: 0.033" (0.85mm)
  • Compliance: Halogen-free
  • Manufacturer Pack Quantity: 3,000
