Same model may have multiple batches, images only for reference.

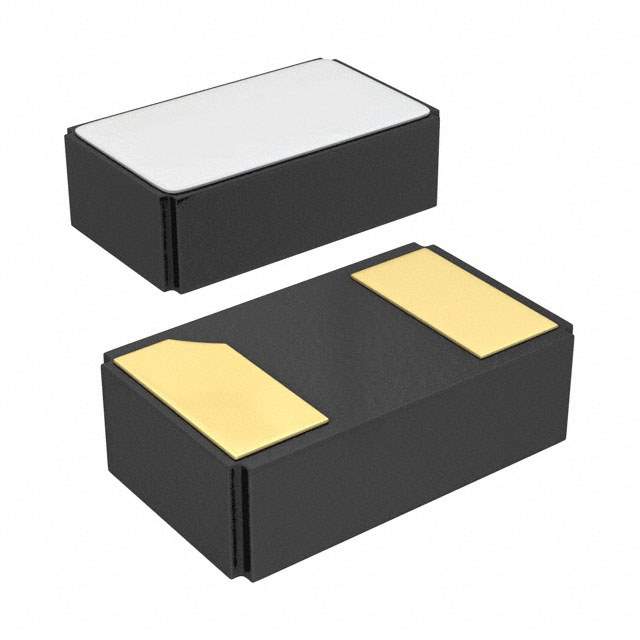

9HT11-32.768KDZB-T Real Image
Same model may have multiple batches, images only for reference.

9HT11-32.768KDZB-T

Part No 9HT11-32.768KDZB-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Datasheet
9HT11-32.768KDZB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 9HT11
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Other Names 887-2616-2,9HT11-32.768KDZB-T,887-2616-1,887-2616-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1284978-9HT11-32.768KDZB-T
Ultra Librarian 3D Model Ultra Librarian 9HT11-32.768KDZB-T CAD Model

Description

The TXC CORPORATION 1284978-9HT11-32.768KDZB-T is a kHz crystal (tuning fork) designed for use in crystals, oscillators, and resonators.

  • Package: Tape & reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT) technology
  • Frequency: 32.768 kHz
  • ESR: 90 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 6pF
  • Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.60.0010
  • Other names: 887-2616-2, 9HT11-32.768KDZB-T, 887-2616-1, 887-2616-6
