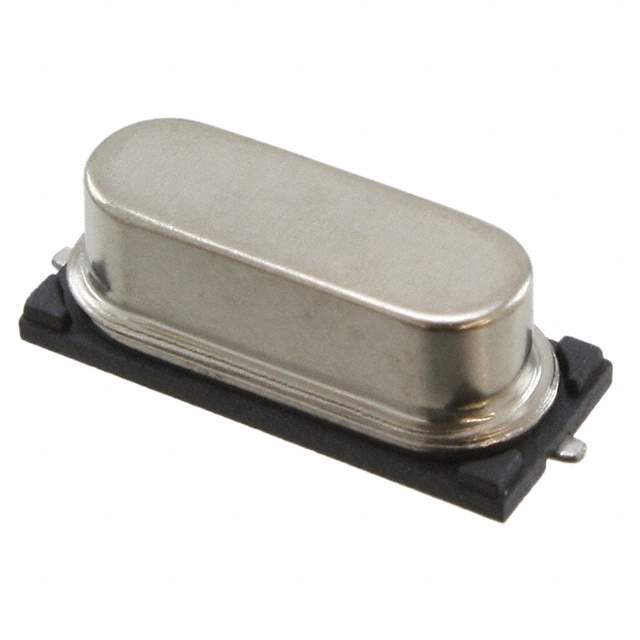

AT12070002 Real Image
Same model may have multiple batches, images only for reference.

AT12070002

Part No AT12070002
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TXC CORPORATION
Packaging Reel
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package HC-49/US
Dimension 0.492" L x 0.189" W (12.50mm x 4.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808427-AT12070002
Ultra Librarian 3D Model Ultra Librarian AT12070002 CAD Model

Description

The TXC Corporation MHz Crystal is a high-quality electronic component that is designed to provide excellent frequency stability and tolerance.

  • Height: 0.161" (4.10mm)
  • Frequency: 12MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 18pF
  • Operating Mode: -
  • Dimensions: 0.492" L x 0.189" W (12.50mm x 4.80mm)
