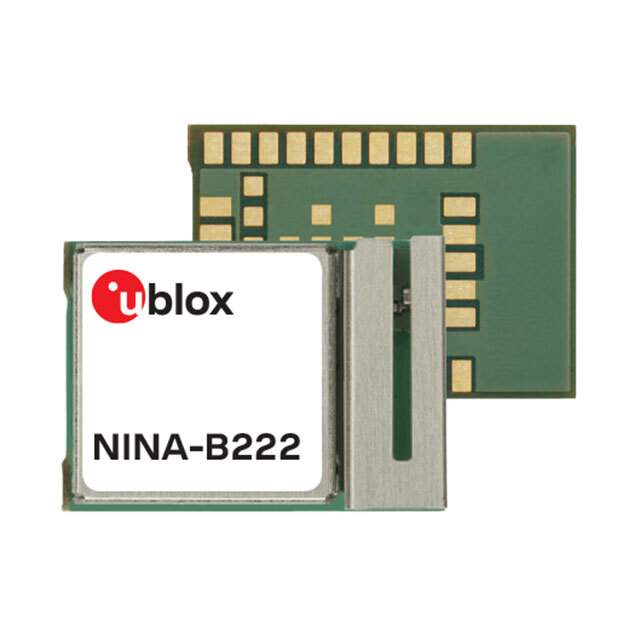

NINA-B222-03B Real Image
Same model may have multiple batches, images only for reference.

NINA-B222-03B

Part No NINA-B222-03B
Manufacturer U-blox
Catalog RF Transceiver Modules
Description RF TXRX MOD DUAL BLUETOOTH SMD / Bluetooth Bluetooth v4.2 + EDR Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
NINA-B222-03B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr U-Blox
Series NINA-B2
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2 + EDR
Modulation 4-QPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate 3Mbps
Power - Output 11dBm
Sensitivity -88dBm
Serial Interfaces GPIO, SPI, UART
Antenna Type Integrated, Chip
Memory Size 16Mb Flash, 4Mb SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 50mA ~ 110mA
Current - Transmitting 60mA~ 150mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 36-SMD Module
Standard Package 500
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1341044-NINA-B222-03B
Ultra Librarian 3D Model Ultra Librarian NINA-B222-03B CAD Model

Description

The NINA-B2 series from U-Blox is an RF transceiver module designed for use in Bluetooth v4.2 + EDR protocols.

  • Frequency: 2.4GHz
  • Data Rate: 3Mbps
  • Memory Size: 16Mb Flash, 4Mb SRAM
  • Antenna Type: Integrated, chip
  • Power Output: 11dBm
  • Sensitivity: -88dBm
  • Current Receiving: 50mA ~ 110mA
  • Current Transmitting: 60mA ~ 150mA
  • Voltage Supply: 3V ~ 3.6V
  • Serial Interfaces: GPIO, SPI, and UART
  • Mounting Type: Surface mount
  • Package/Case: 36-SMD module
  • Temperature Range: -40°C ~ 85°C
