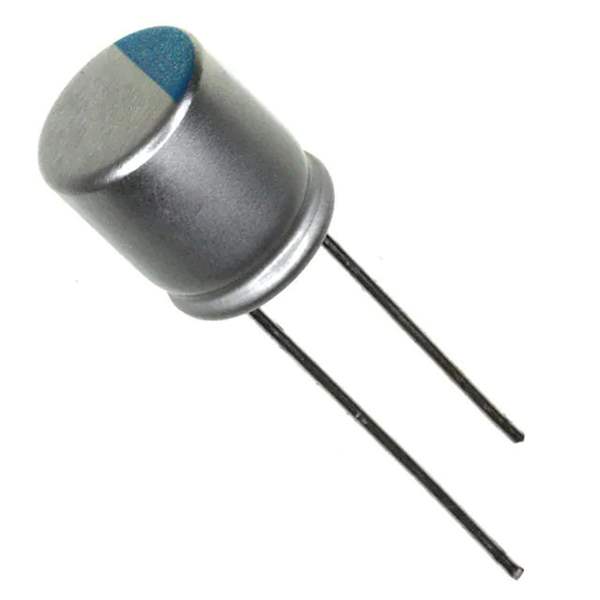

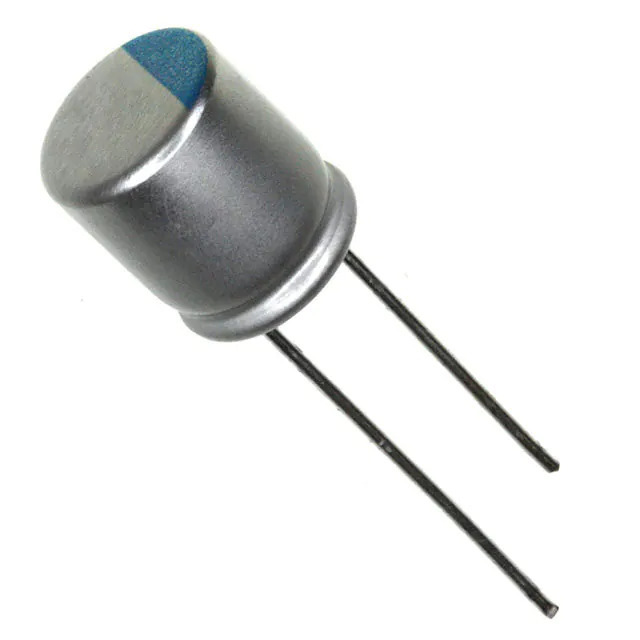

APSG160ELL102MH20S United Chemi-Con
Same model may have multiple batches, images only for reference.

APSG160ELL102MH20S

Part No APSG160ELL102MH20S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 1000UF 20% 16V T/H / 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSG
Package Bulk
Product Status Active
Type Polymer
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 7.5 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359505-APSG160ELL102MH20S
Ultra Librarian 3D Model Ultra Librarian APSG160ELL102MH20S CAD Model

Description

The 1359505-APSG160ELL102MH20S is a polymer capacitor from United Chemi-Con's NPCAP™-PSG series.

  • Manufacturer: United Chemi-Con
  • Series: NPCAP™-PSG
  • Application: General Purpose
  • Capacitance: 1000 µF
  • Voltage Rating: 16 V
  • Temperature Range: -55°C to 105°C
  • ESR: 8mOhm
  • Ripple Current: 7.5 A @ 100 kHz
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lifetime: 20000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
