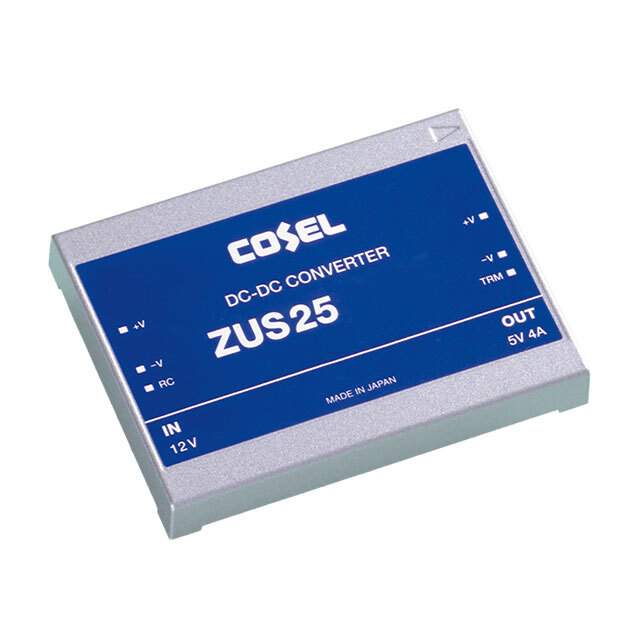

Same model may have multiple batches, images only for reference.

ZUS252405

Name: ZUS252405
Brand: Cosel USA, Inc.
SKU: 1219625
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUS252405
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 4A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUS (25W)
Package	Box
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	82%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1852
Standard Package	1
Win Source Part Number	1219625-ZUS252405
Ultra Librarian 3D Model	Ultra Librarian ZUS252405 CAD Model

Alternative Products

Description

The ZUS252405 is a power supply isolated module from the ZUS series manufactured by Cosel USA, Inc.

Conversion: DC to DC
Features: Remote On/Off, Over-Current Protection, Over-Voltage Protection
Package: 6-DIP module
Supply Voltage Range: 18V to 36V
Maximum Output Current: 4A
Efficiency: 82%
Application: Commercial Information Technology Equipment
