Same model may have multiple batches, images only for reference.

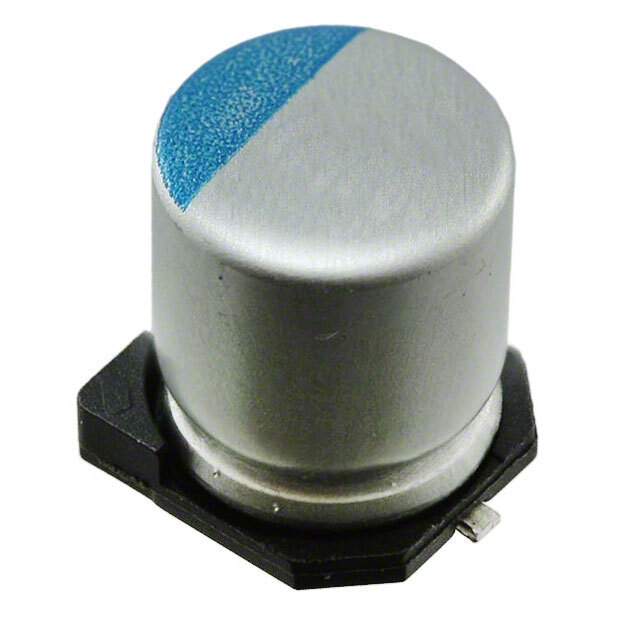

APXE2R5ARA561MF80G Real Image
Same model may have multiple batches, images only for reference.

APXE2R5ARA561MF80G

Part No APXE2R5ARA561MF80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2.5V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 15 Weeks
Features 560 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 13mOhm 2000 Hrs @ 105°C
Manufacturer United Chemi-Con
Series NPCAP™-PXE
Package Reel - TR
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount
Package Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 565-3169-2, 565-3169-1, 565-3169-6
Quantity per package 900
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861687-APXE2R5ARA561MF80G
Ultra Librarian 3D Model Ultra Librarian APXE2R5ARA561MF80G CAD Model

Description

The United Chemi-Con NPCAP™-PXE series capacitor is a surface mount aluminum-polymer capacitor with a capacitance of 560 µF and a voltage rating of 2.5V.

  • Capacitance: 560 µF
  • Voltage Rating: 2.5V
  • Package: Radial, can - SMD
  • ESR: 13mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Operating Temperature Range: -55°C ~ 105°C
  • Package Type: Reel - TR
  • Quantity per Package: 900
