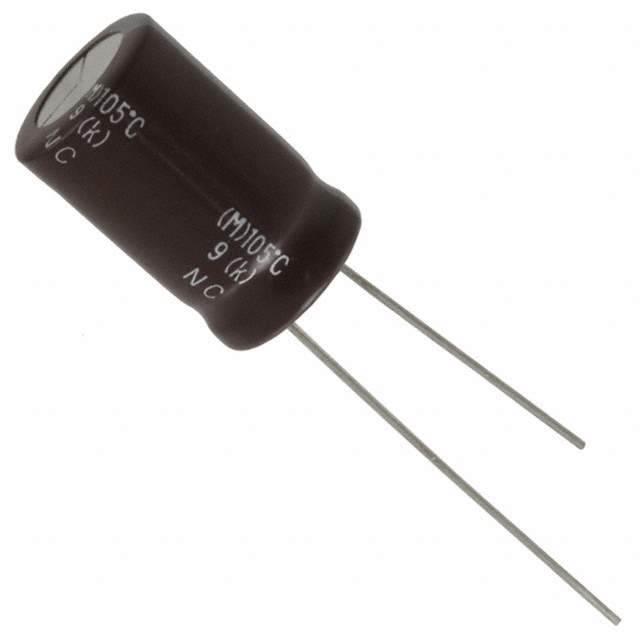

EKMG161ELL470MK20S Real Image
Same model may have multiple batches, images only for reference.

EKMG161ELL470MK20S

Part No EKMG161ELL470MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 160V RADIAL / Cap Aluminum Lytic 47uF 160V 20% (12.5 X 20mm) Radial 5mm 195mA 2000h 105°C Bulk
Datasheet
EKMG161ELL470MK20S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KMG
Packaging Bulk
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 160V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 195mA @ 120Hz
Ripple Current - High Frequency 351mA @ 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 0.846" (21.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777928-EKMG161ELL470MK20S
Popularity Medium
Supply and Demand Status Limited
Family Name KM
Introduction Date September 20, 2004
ECCN EAR99
Country of Origin China, Indonesia, Japan, Republic of Korea, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EKMG161ELL470MK20S CAD Model

Description

The United Chemi-Con KMG series capacitor is a high-quality through-hole component suitable for general electronic applications.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage Rating: 160V DC
  • Package: Radial Can
  • Diameter: 0.492 inches (12.50mm)
  • Height: 0.846 inches (21.50mm)
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 195mA @ 120Hz
  • Ripple Current (High Frequency): 351mA @ 100kHz
  • Lead Spacing: 0.197 inches (5.00mm)
  • Polarized: Yes
  • Family: KM
  • Packaging: Bulk
  • Estimated EOL Date: 2027
