Same model may have multiple batches, images only for reference.

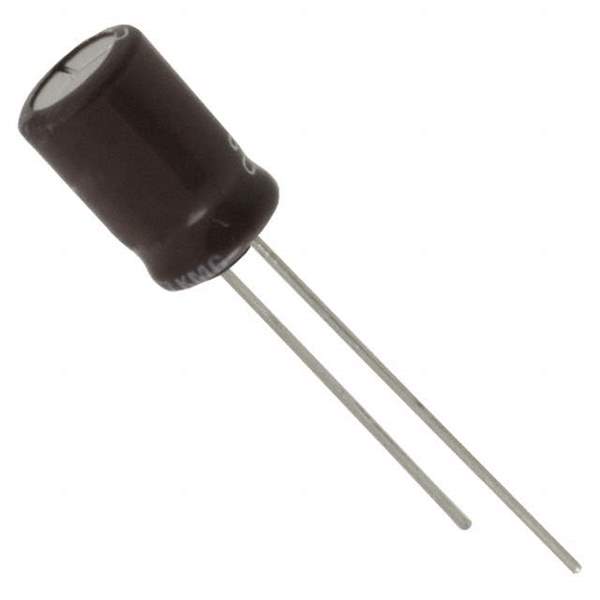

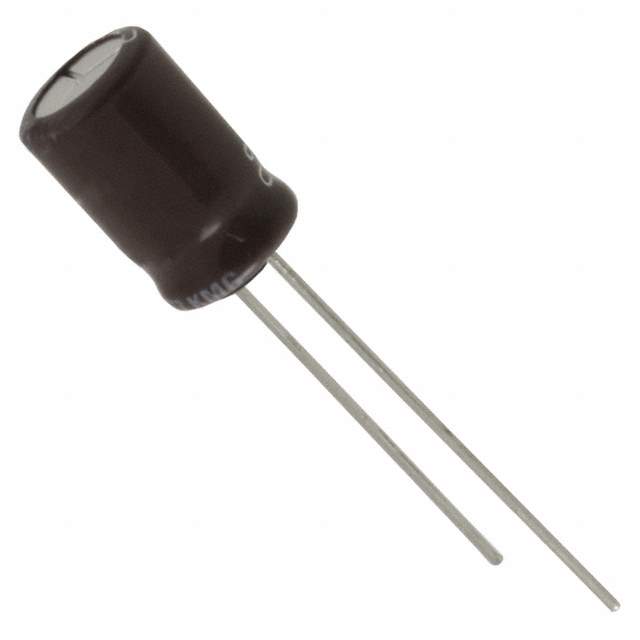

EKMG6R3ELL102MHB5D Real Image
Same model may have multiple batches, images only for reference.

EKMG6R3ELL102MHB5D

Part No EKMG6R3ELL102MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 6.3V RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 1000μF
Tolerance ±20%
Voltage - Rated 6.3V
Lifetime at Temp. 1000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 380mA at 120Hz
Ripple Current at High Frequency 570mA at 100kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806724-EKMG6R3ELL102MHB5D
Ultra Librarian 3D Model Ultra Librarian EKMG6R3ELL102MHB5D CAD Model

Description

The United Chemi-Con 806724-EKMG6R3ELL102MHB5D is a bulk packaged, through-hole mounted capacitor with a capacitance of 1000μF.

  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • Polarized: Yes
  • Lead Spacing: 0.138" (3.50mm)
  • Surface Mount Land Size: Not applicable
  • Operating Temperature Range: -55°C to 105°C
  • Ripple Current @ 120Hz: 380mA
  • Ripple Current @ 100kHz: 570mA
  • Applications: General Use
  • Package: Radial, Can
  • Height (seated): 0.512" (13.00mm)
  • Manufacturer Pack Quantity: 1,000
  • Popularity: Medium
  • Status: Balanced supply and demand
  • Lifetime: 1000 Hrs @ 105°C
