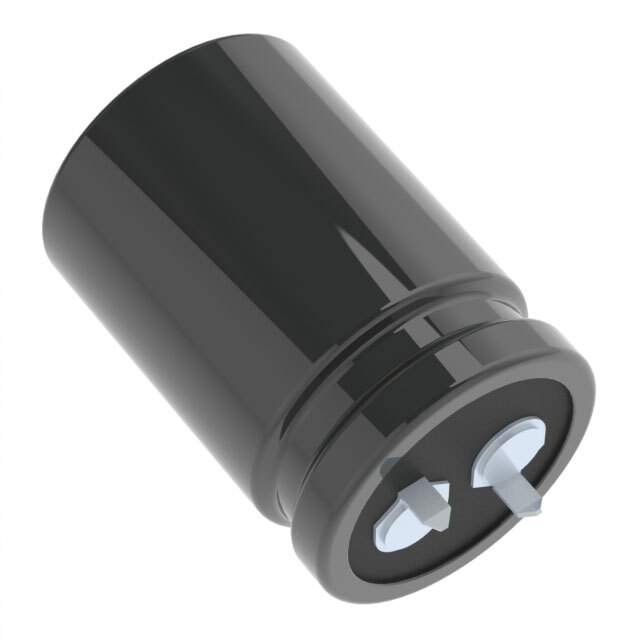

EKMH800VSN222MQ35S Real Image
Same model may have multiple batches, images only for reference.

EKMH800VSN222MQ35S

Part No EKMH800VSN222MQ35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 80V SNAP / 2200 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 113mOhm @ 120Hz 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMH
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 113mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.01 A @ 120 Hz
Ripple Current @ High Frequency 2.412 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.000" Dia (25.40mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1351083-EKMH800VSN222MQ35S
Ultra Librarian 3D Model Ultra Librarian EKMH800VSN222MQ35S CAD Model

Description

The KMH series aluminum electrolytic capacitor is a general-purpose component with a capacitance of 2200 µF and a voltage rating of 80 V.

  • Capacitance: 2200 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • Standard Package: 200
  • Size/Dimension: 1.000" Dia (25.40mm)
  • Height Seated (Max): 1.457" (37.00mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.394" (10.00mm)
  • ESR: 113mOhm @ 120Hz
  • Package/Case: Radial, Can - Snap-In
  • Temperature Range: -40°C ~ 105°C
