Same model may have multiple batches, images only for reference.

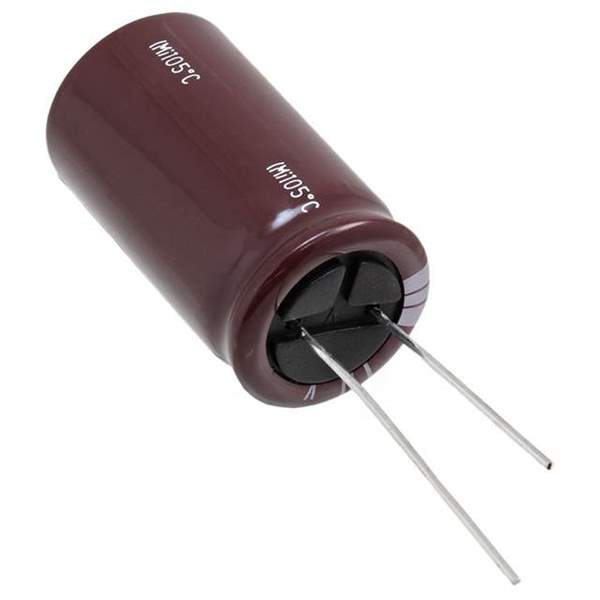

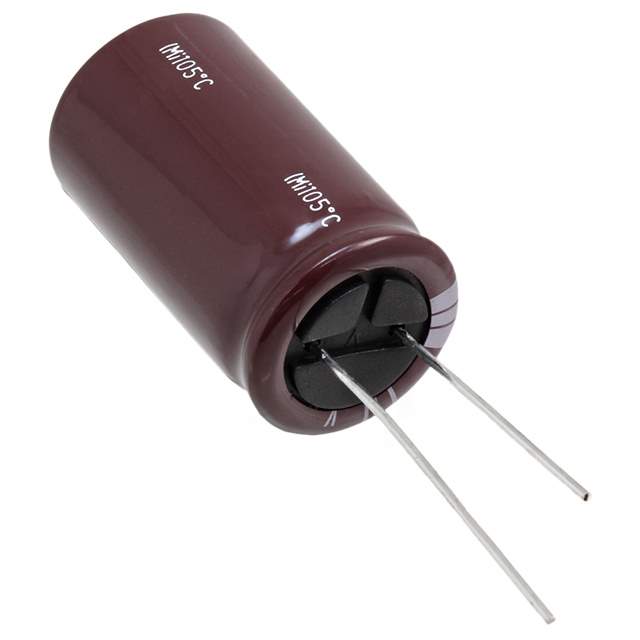

EKYB500ELL222MMN3S Real Image
Same model may have multiple batches, images only for reference.

EKYB500ELL222MMN3S

Part No EKYB500ELL222MMN3S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 50V RADIAL / 2200 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Obsolete
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.85 A @ 120 Hz
Ripple Current @ High Frequency 3.8 A @ 100 kHz
Impedance 14 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.299" (33.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3955-ND,565-EKYB500ELL222MMN3S,565-3955
Standard Package 250
Win Source Part Number 1057006-EKYB500ELL222MMN3S
Ultra Librarian 3D Model Ultra Librarian EKYB500ELL222MMN3S CAD Model

Description

The United Chemi-Con KYB capacitor series includes the 1057006-EKYB500ELL222MMN3S capacitor, which is a through-hole radial, can package capacitor.

  • Capacitance: 2200 µF
  • Voltage Rating: 50V
  • Package: Through-hole radial, can
  • Polarized: Yes
  • Tolerance: ±20%
  • Lead Spacing: 0.295" (7.50mm)
  • Impedance: 14 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Ripple Current: 2.85 A @ 120 Hz and 3.8 A @ 100 kHz
  • Dimension: 0.709" Dia (18.00mm)
  • Seated Height: 1.299" (33.00mm)
  • Lifetime: 10000 hours @ 105°C
  • Standard Package: 250
