Same model may have multiple batches, images only for reference.

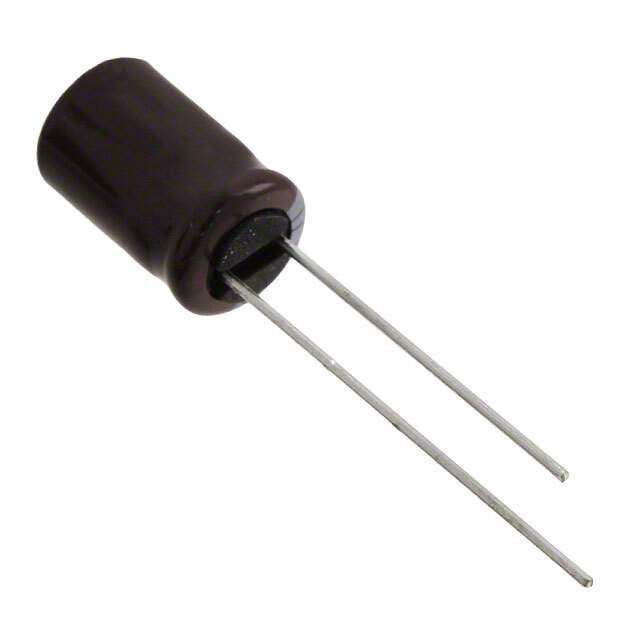

EKZE100ELL471MHB5D Real Image
Same model may have multiple batches, images only for reference.

EKZE100ELL471MHB5D

Part No EKZE100ELL471MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 10V RADIAL
Datasheet
EKZE100ELL471MHB5D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Status Active
Capacitance 470μF
Tolerance ±20%
Voltage Rating 10V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 380mA @ 120Hz
Ripple Current - High Frequency 760mA @ 100kHz
Impedance 72 mOhm
Lead Spacing 0.138" (3.50mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1050509-EKZE100ELL471MHB5D
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Ultra Librarian 3D Model Ultra Librarian EKZE100ELL471MHB5D CAD Model

Description

The United Chemi-Con EKZE100ELL471MHB5D is an active electronic component that falls under the category of capacitors.

  • Mounting Type: Through-Hole
  • Voltage Rating: 10V
  • Capacitance: 470μF
  • Tolerance: ±20%
  • Impedance: 72 mOhm
  • Ripple Current - Low Frequency: 380mA @ 120Hz
  • Ripple Current - High Frequency: 760mA @ 100kHz
  • Lifetime: 3000 Hrs @ 105°C
  • Polarized: Yes
