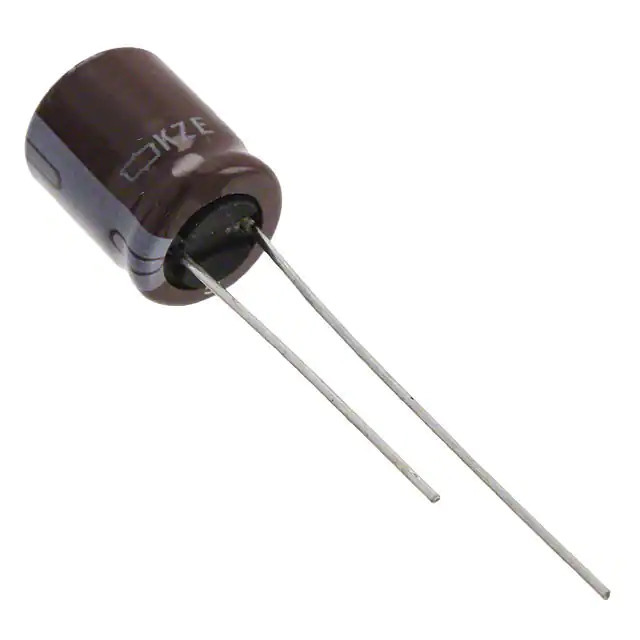

Same model may have multiple batches, images only for reference.
EKZE630ELL221MJ25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZE630ELL221MJ25S

Part No EKZE630ELL221MJ25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 63V RADIAL / 220 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 675 mA @ 120 Hz
Ripple Current @ High Frequency 1.35 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360666-EKZE630ELL221MJ25S
Ultra Librarian 3D Model Ultra Librarian EKZE630ELL221MJ25S CAD Model

Description

The 1360666-EKZE630ELL221MJ25S is a high-quality aluminum electrolytic capacitor manufactured by United Chemi-Con.

  • Series: KZE
  • Applications: General Purpose
  • Capacitance: 220 μF
  • Voltage - Rated: 63 V
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" (10.0mm) Dia
  • Lifetime @ Temp.: 4000 Hrs @ 105°C
  • Tolerance: ±20%
  • Ripple Current - Low Frequency: 675 mA @ 120 Hz
  • Ripple Current - High Frequency: 1.35 A @ 100 kHz
