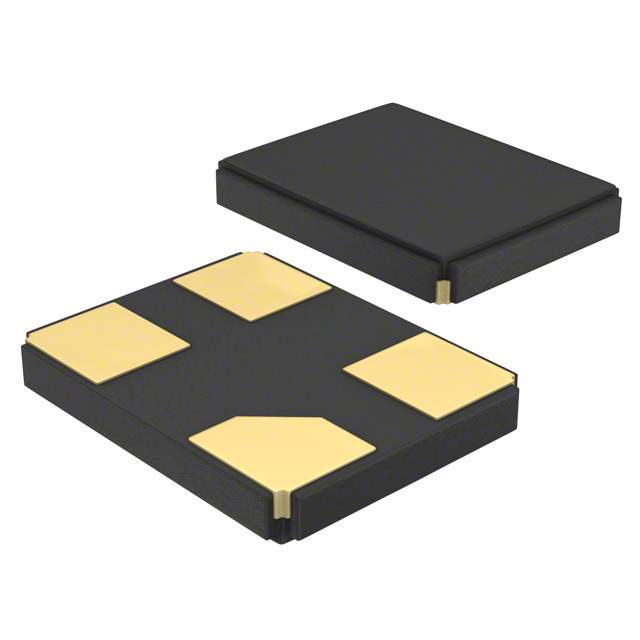

7S-16.000MAHE-T

Part No 7S-16.000MAHE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 16.0000MHZ 12PF SMD / 16 MHz ±30ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
Datasheet
7S-16.000MAHE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7S
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.033" (0.85mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1338037-7S-16.000MAHE-T
Ultra Librarian 3D Model Ultra Librarian 7S-16.000MAHE-T CAD Model

Description

The TXC CORPORATION 7S series MHz Crystal with a frequency of 16 MHz and an ESR of 100 Ohms is a surface mount device (SMD) type component.

  • Packaging: Tape and Reel
  • Size / Dimension: 0.098 inches (2.50mm) L x 0.079 inches (2.00mm) W
  • Height - Seated: 0.033 inches (0.85mm)
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±30ppm
  • Operating Temperature: -40°C ~ 85°C
  • Load Capacitance: 12pF
  • Package / Case: 4-SMD, No Lead
  • Status: Obsolete
  • ECCN: EAR99
