Same model may have multiple batches, images only for reference.

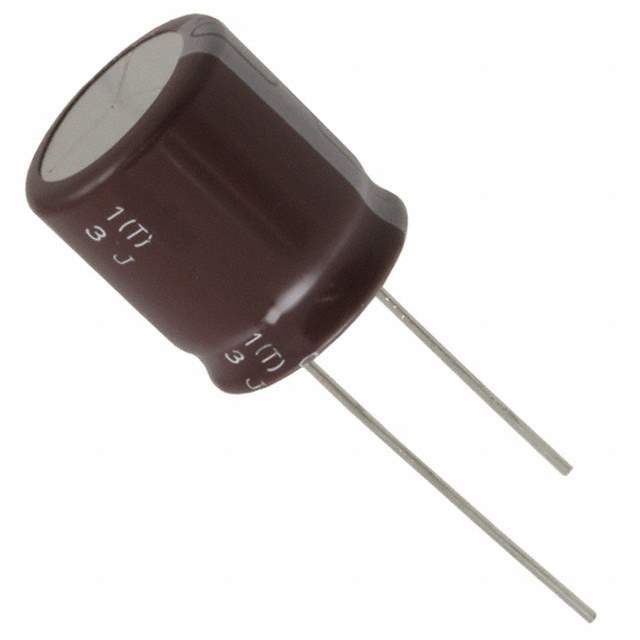

EKZE800ELL471MM20S Real Image
Same model may have multiple batches, images only for reference.

EKZE800ELL471MM20S

Part No EKZE800ELL471MM20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 80V RADIAL / 470 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 750 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 45 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 1028000-EKZE800ELL471MM20S
Ultra Librarian 3D Model Ultra Librarian EKZE800ELL471MM20S CAD Model

Description

The KZE series from United Chemi-Con is a range of aluminum electrolytic capacitors designed for general purpose use.

  • Capacitance: 470 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Ripple Current: 750 mA @ 120 Hz and 1.5 A @ 100 kHz
  • ESR: Not Specified
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Package Size: 0.709" Dia (18.00mm)
  • Height Seated: 0.846" (21.50mm)
